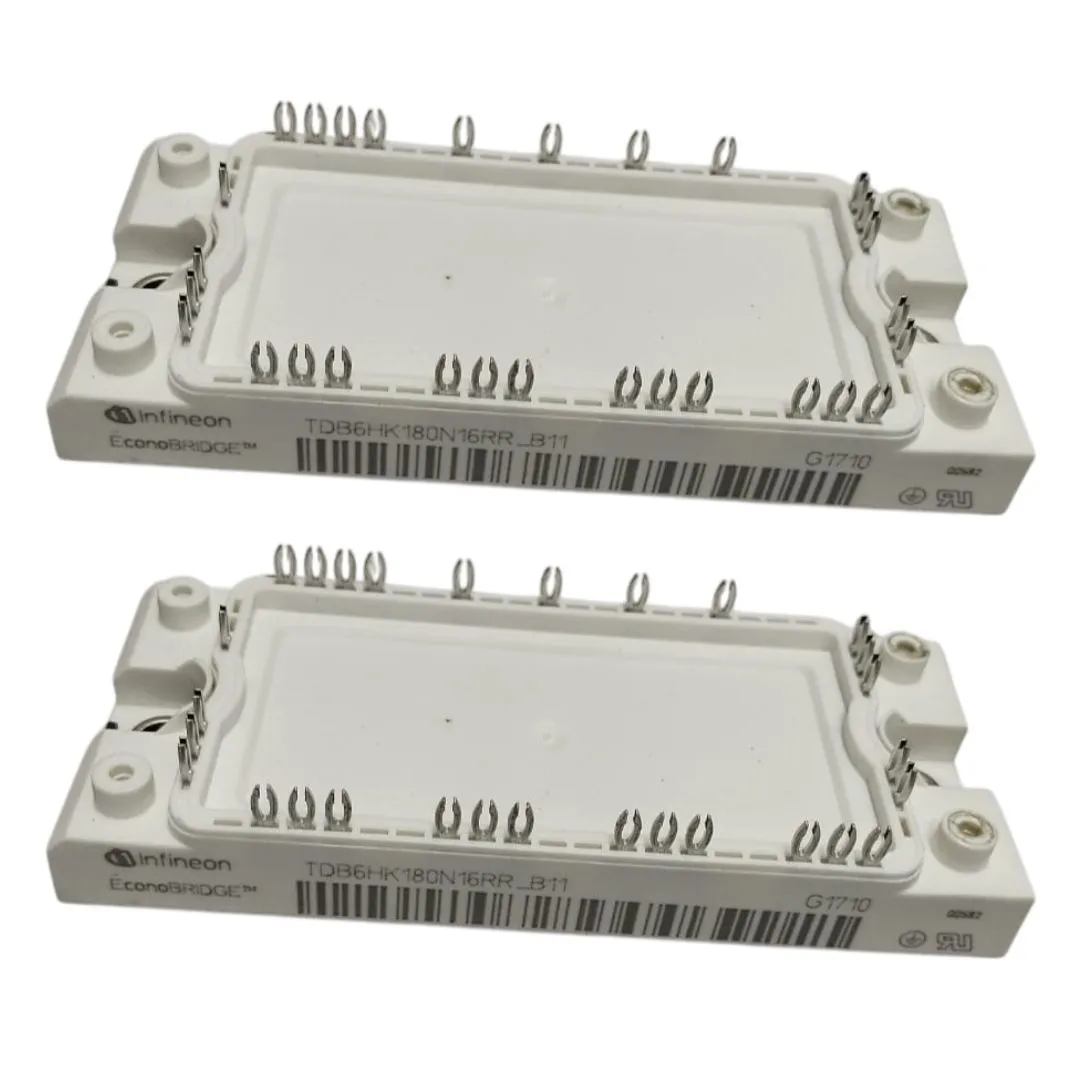

TDB6HK180N16RR-B11 Infineon TDB6HK180N16RR-B11 EconoBRIDGE Rectifier Module with Brake Chopper 1600V 180A
TDB6HK180N16RR_B11 is an Infineon EconoBRIDGE power module featuring a 1600 V half-controlled bridge rectifier and an integrated brake chopper IGBT for industrial drives, converters, active rectifiers and power supply systems.
The TDB6HK180N16RR_B11 is an Infineon EconoBRIDGE / EconoPACK™ 2 power module designed for high-power rectifier and AC switching applications. It integrates a 1600 V half-controlled B6 bridge with a brake chopper IGBT, making it suitable for industrial power conversion systems where compact design, high current capability and reliable thermal performance are required.
According to the Infineon technical data, the module supports VRRM 1600 V for the rectifier section and features an IGBT brake chopper rated at VCES 1200 V. The datasheet lists typical applications including active rectifiers and half-controlled B6 bridge circuits.
Key Features
- Infineon EconoBRIDGE / EconoPACK™ 2 power module
- Half-controlled B6 bridge rectifier configuration
- Integrated brake chopper IGBT
- Repetitive peak reverse voltage: 1600 V
- Rectifier output RMS current: 180 A
- IGBT brake chopper voltage rating: 1200 V
- Nominal IGBT current: 180 A / ICRM 360 A
- 2.5 kV AC 1 minute insulation
- Al₂O₃ substrate with low thermal resistance
- Isolated copper base plate
- Compact standard housing
- High power density and mechanical robustness
- RoHS compliant
- UL approved, according to datasheet marking
Applications
The TDB6HK180N16RR_B11 is suitable for industrial and power electronics systems requiring controlled rectification and braking energy handling. Typical application areas include:
- Active rectifier systems
- Half-controlled B6 bridge circuits
- Motor drives and frequency converters
- Industrial AC/DC power conversion
- UPS and power supply systems
- Soft starters
- Regenerative or braking circuits
- High-power converter assemblies
Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Infineon |
| Manufacturer Part Number | TDB6HK180N16RR_B11 |
| Product Series | EconoBRIDGE / EconoPACK™ 2 |
| Product Type | Bridge Rectifier / AC Switch Power Module |
| Circuit Type | Half-Controlled B6 Bridge with Brake Chopper |
| Rectifier VRRM | 1600 V |
| Rectifier Output RMS Current | 180 A |
| RMS Forward Current per Chip | 150 A |
| Rectifier Forward Voltage | 1.20 V typ. at IF = 150 A, Tvj = 150°C |
| IGBT VCES | 1200 V |
| IGBT Nominal Current | 180 A |
| IGBT Repetitive Peak Current | 360 A |
| Termination | 29 Pin PC Mount |
| Isolation Test Voltage | 2.5 kV AC, 1 min |
| Internal Isolation | Al₂O₃ |
| Baseplate Material | Copper |
| Package / Housing | Standard EconoPACK™ 2 Module |
| Net Weight | Approx. 180 g / 0.41 lb |
| RoHS Status | RoHS Compliant |
| UL Status | UL Approved / Recognized |
| Typical Applications | Active Rectifier, Half-Controlled B6 Bridge |
Summary
The Infineon TDB6HK180N16RR_B11 combines a high-voltage rectifier bridge and brake chopper function in a compact EconoPACK™ 2 module. With 1600 V rectifier voltage rating, 180 A rectifier output current, isolated baseplate construction and low thermal resistance substrate, it is a strong choice for industrial power conversion, motor drive and active rectifier applications where reliability and space efficiency are important.
