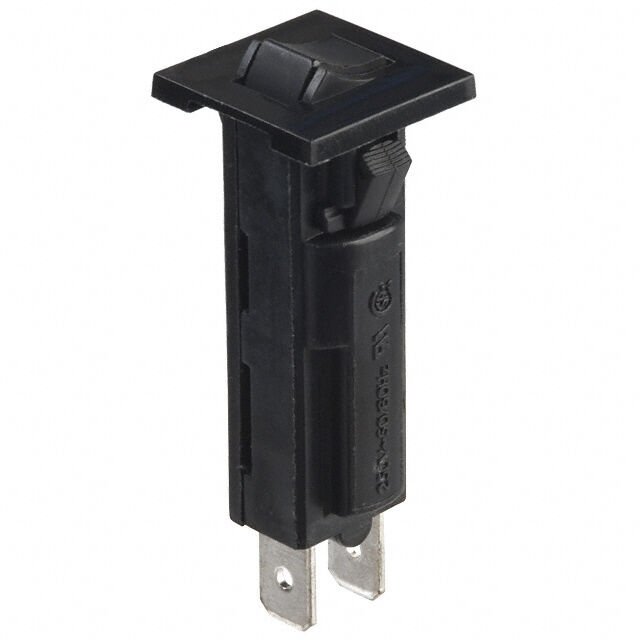

2-1393250-5 TE Connectivity 2-1393250-5 W28-XQ1A-10 10A Push-to-Reset Thermal Circuit Breaker
TE Connectivity 2-1393250-5 is a W28 series 10A push-to-reset thermal circuit breaker rated for 250VAC and 32VDC, designed for single-pole panel-mount circuit protection.
TE Connectivity 2-1393250-5, also known as W28-XQ1A-10, is a Potter & Brumfield W28 series thermal circuit breaker designed for supplementary circuit protection in electrical and electronic equipment. This device combines a fuseholder-style form factor with a resettable thermal breaker mechanism, helping reduce downtime compared with single-use fuses.
The part features a 10A current rating, 250VAC / 32VDC voltage rating, single-pole configuration, and push-to-reset actuator. When the breaker trips, the push button extends to provide a visible trip indication, and the circuit can be restored by pressing the actuator after the fault condition has been cleared. TE lists this model as a series trip thermal circuit breaker with a black, non-illuminated actuator.
This component is suitable for equipment requiring compact, resettable overcurrent protection, including power supplies, appliances, industrial control panels, test equipment, office equipment, and other AC/DC circuits within the specified ratings.
Key Features
- Manufacturer: TE Connectivity / Potter & Brumfield
- Part Number: 2-1393250-5
- Equivalent / Series Code: W28-XQ1A-10
- Product Series: W28
- Product Type: Thermal Circuit Breaker
- Current Rating: 10A
- Voltage Rating: 250VAC / 32VDC
- Number of Poles: 1 Pole
- Actuator Type: Push to Reset
- Actuator Color: Black
- Illumination: Non-illuminated
- Mounting Type: Panel Mount
- Circuit Function: Series Trip
- Trip Time at 200%: 2.2 – 15 seconds, according to TE product data
- Operating Temperature: -20°C to +60°C, according to distributor specifications
- Application Type: Supplementary circuit protection
Specifications Table
| Parameter | Value |
|---|---|
| Manufacturer | TE Connectivity / Potter & Brumfield |
| Manufacturer Part Number | 2-1393250-5 |
| Alternate Part Number | W28-XQ1A-10 |
| Product Category | Circuit Breakers |
| Series | W28 |
| Breaker Type | Thermal |
| Circuit Breaker Style | Fuseholder Type |
| Circuit Function | Series Trip |
| Current Rating | 10A |
| Voltage Rating AC | 250VAC |
| Voltage Rating DC | 32VDC |
| Number of Poles | 1 |
| Actuator Type | Push to Reset |
| Actuator Color | Black |
| Illumination | No Light / Non-Illuminated |
| Mounting Type | Panel Mount |
| Operating Temperature | -20°C to +60°C |
| Part Status | Active |
| Base Product Number | W28 |
Applications
- Power supplies
- Industrial control equipment
- Office equipment
- Electrical appliances
- Test and measurement equipment
- Panel-mounted circuit protection
- Resettable overcurrent protection circuits
- AC and low-voltage DC equipment protection
Summary
TE Connectivity 2-1393250-5 / W28-XQ1A-10 is a 10A, 250VAC / 32VDC, single-pole push-to-reset thermal circuit breaker from the Potter & Brumfield W28 series, suitable for compact panel-mounted supplementary circuit protection.
