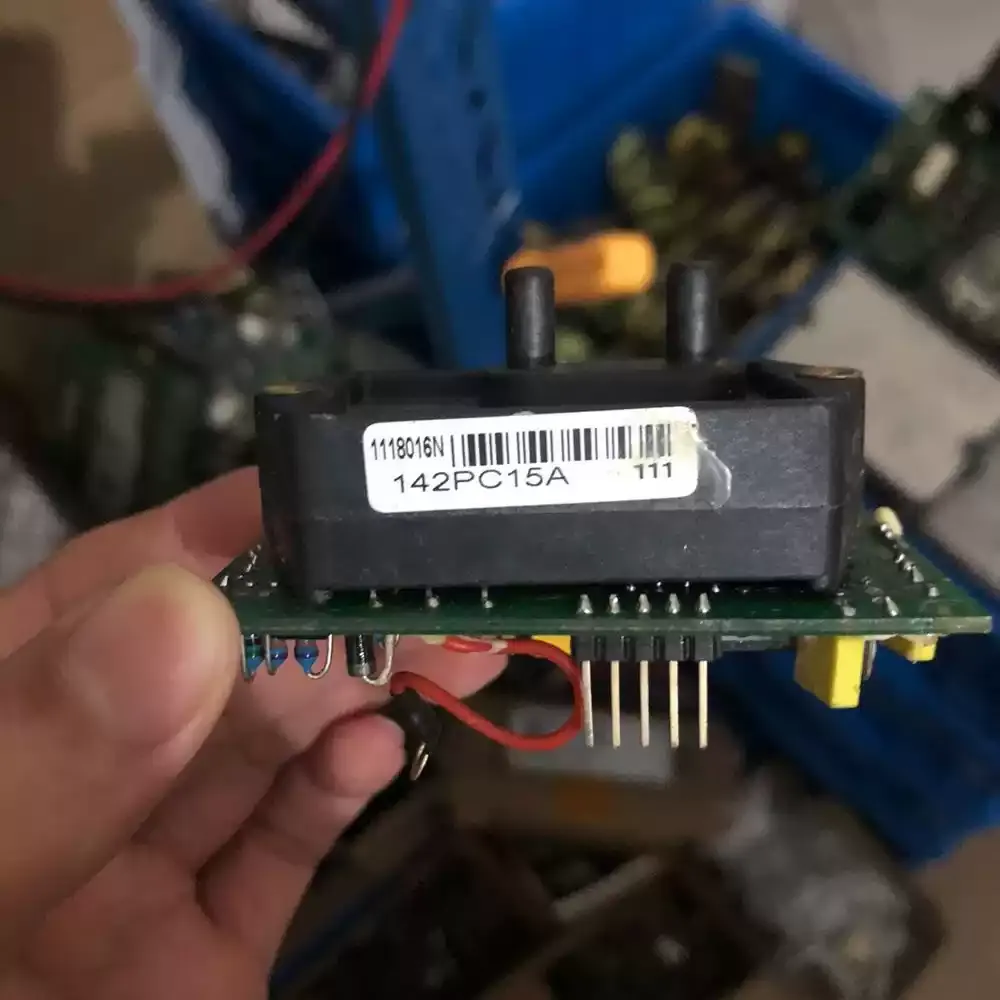

142PC15A Honeywell 142PC15A Absolute Pressure Sensor, 15 PSIA, Analog Voltage Output, 0.2″ Tube Port
- Absolute Pressure Measurement: Measures 2–15 PSI (13.79–103.42 kPa) with a maximum pressure of 45 PSI.
- Analog Voltage Output: Provides 1 V to 5.33 V output for easy integration with electronics.
- High Accuracy: ±0.4% for precise readings in critical applications.
- Wide Supply Range: Operates from 7 V to 16 V for flexible deployment.
The Honeywell 142PC15A is a board-mount absolute pressure sensor from the Honeywell 140PC Series, designed for accurate pressure measurement in industrial, electronic, and embedded control applications. It provides an amplified analog voltage output and is temperature compensated for stable performance across a wide operating temperature range.
With an operating pressure range of 2 PSI to 15 PSI and a maximum pressure rating of 45 PSI, the 142PC15A is suitable for applications requiring reliable absolute pressure sensing with easy PCB integration. Its 3-SIP through-hole package, PC pin termination, and 0.2 inch / 5 mm male tube port make it convenient for board-level designs and pneumatic connections.
Specifications
| Feature | Description |
|---|---|
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Part Number | 142PC15A |
| Series | 140PC |
| Sensor Type | Absolute Pressure Sensor |
| Operating Pressure | 2 PSI to 15 PSI / 13.79 kPa to 103.42 kPa |
| Maximum Pressure | 45 PSI / 310.26 kPa |
| Output Type | Analog Voltage |
| Output Range | 1 V to 5.33 V |
| Supply Voltage | 7 V to 16 V |
| Accuracy | ±0.4% |
| Port Size | Male 0.2″ / 5 mm Tube |
| Port Style | Barbless |
| Mounting Type | Through Hole / Board Mount |
| Package / Case | 3-SIP Module |
| Termination Style | PC Pin |
| Operating Temperature | -40°C to +85°C |
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Part Status | Active |
Key Features
- Absolute Pressure Measurement: Measures 2–15 PSI (13.79–103.42 kPa) with a maximum pressure of 45 PSI.
- Analog Voltage Output: Provides 1 V to 5.33 V output for easy integration with electronics.
- High Accuracy: ±0.4% for precise readings in critical applications.
- Wide Supply Range: Operates from 7 V to 16 V for flexible deployment.
- Temperature Compensated: Stable performance across -40 °C to +85 °C.
- Compact Board-Mount Design: 3-SIP through-hole package with PC pin termination.
- Easy Port Integration: 0.2″ (5 mm) male barbless tube for simple pneumatic connection.
- Amplified Output: Suitable for industrial and embedded applications.
- Active Part Status: Ready for production and bulk orders.
Applications
The Honeywell 142PC15A pressure sensor is suitable for use in:
- Industrial pressure monitoring systems
- Embedded control boards
- Pneumatic control equipment
- Medical and laboratory instruments
- HVAC pressure sensing
- Automation and process control systems
- Test and measurement equipment
Summary
The 142PC15A is a reliable Honeywell absolute pressure sensor offering 15 PSIA measurement capability, analog voltage output, and temperature-compensated performance. Its compact 3-SIP through-hole package and amplified output make it a practical choice for engineers and buyers looking for a board-mounted pressure sensor for industrial and electronic pressure measurement applications.
Specification: Honeywell 142PC15A Absolute Pressure Sensor, 15 PSIA, Analog Voltage Output, 0.2″ Tube Port
|
