A current sensor is a device that detects electrical current and converts it into a measurable output signal for monitoring, control, and protection. In modern electronics, current sensing is essential for battery management systems, motor drives, power supplies, EV platforms, solar inverters, robotics, and industrial automation because it gives the system real-time visibility into load behavior, fault conditions, and energy flow.
Current sensors measure AC current, DC current, or both, then convert that electrical behavior into a usable signal for control, protection, and monitoring. The most common types are shunt resistor sensors, Hall-effect current sensors, core-based magnetic sensors, coreless magnetic sensors, current transformers, and Rogowski coils.
In simple terms, if a system needs to know whether it is operating safely and efficiently, it usually needs a current sensor. Some designs use current data to protect MOSFETs or wiring. Others use it for precision control, energy measurement, motor commutation, battery optimization, or thermal management. The best current sensor depends on whether the design must measure AC, DC, or both, whether isolation is required, how much accuracy is needed, and how much power loss the sensing method can tolerate.
What Is a Current Sensor?
A current sensor measures current flowing through a conductor and outputs a proportional electrical signal such as analog voltage, current, or a digital alert. Broadly speaking, the category includes both precision measurement devices and threshold-based sensors that simply indicate whether current is above or below a preset level.
This distinction matters because not every application needs full-resolution measurement. A battery pack, charger, or inverter may need precise bidirectional current data for closed-loop control, while a protection circuit may only need to know when overcurrent occurs. In both cases, the current sensor acts as the link between raw electrical behavior and system-level decision making.
Current is one of the clearest indicators of what is happening inside a circuit. It can reveal overload conditions, detect short circuits, estimate power consumption, monitor energy flow, and help controllers regulate motors, converters, and power rails more accurately.
How Current Sensors Work

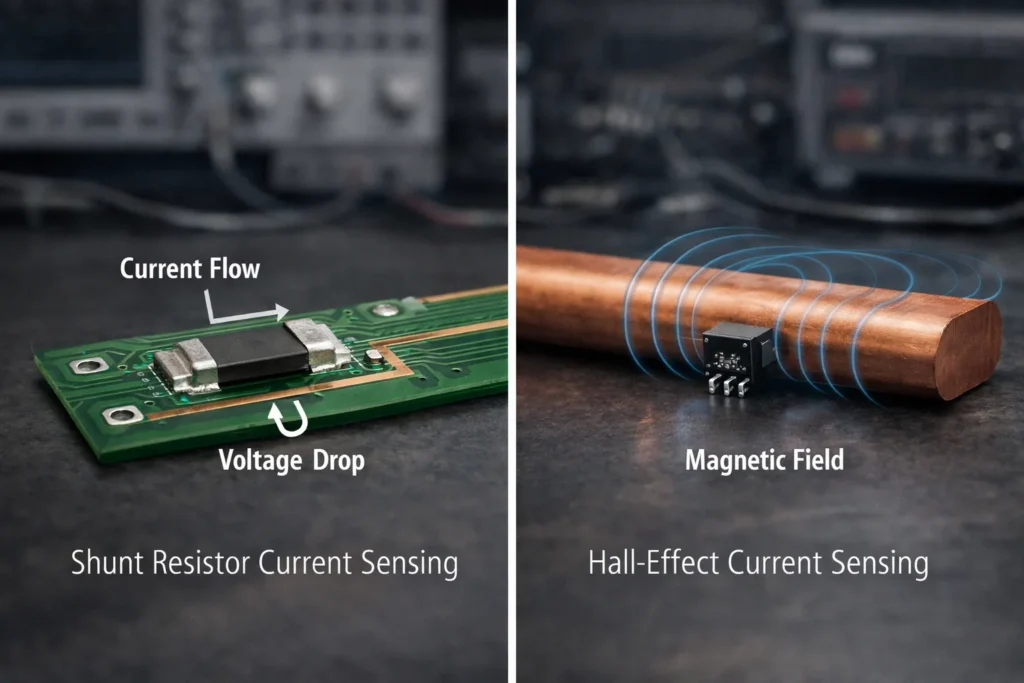

Current sensors generally use one of two measurement approaches: direct sensing or indirect sensing.
Direct sensing usually means placing a low-value resistor in the current path and measuring the voltage drop across it. Because voltage across the resistor is proportional to current, the circuit can calculate current precisely using Ohm’s law. This is the basis of shunt-based current sensing. It is simple, accurate, and cost-effective, but it introduces power loss and heat because the resistor dissipates energy.
Indirect sensing measures the magnetic field created by current rather than forcing the full measurement through a resistor. Hall-effect current sensors, current transformers, and Rogowski coils all follow this general idea in different ways. Indirect methods can reduce insertion loss, improve safety isolation, and make higher-current measurement easier.
Direct sensing
Usually offers higher accuracy and simpler implementation, especially for precision DC measurement.
Indirect sensing
Usually offers lower insertion loss, easier isolation, and better suitability for higher current systems.

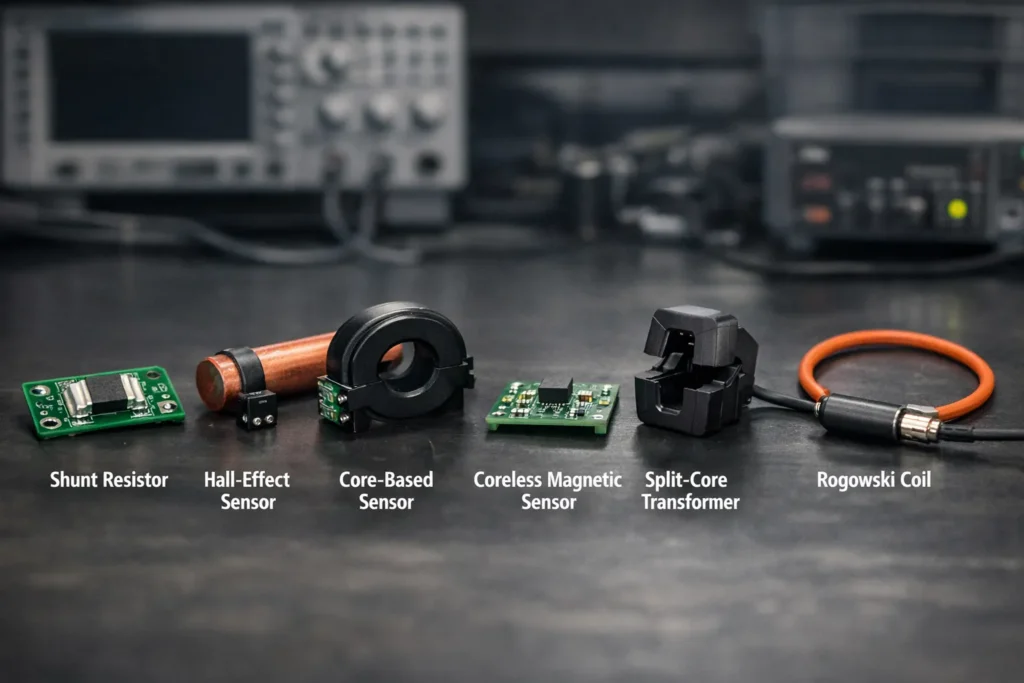

Main Types of Current Sensors
1. Shunt Resistor Current Sensors
Shunt-based sensing remains one of the most common current measurement methods in power electronics. A precision resistor is placed in series with the load, and a current-sense amplifier reads the voltage drop across it. This method is widely used in battery management systems, DC-DC converters, chargers, communication infrastructure, USB power paths, and server rails because it offers excellent DC accuracy and low cost.
In practical designs, engineers often pair low-ohmic shunt resistors from vendors such as Vishay, Bourns, KOA Speer, or Isabellenhuette with a precision current-sense amplifier. This approach works especially well when the current level is moderate, the thermal budget is manageable, and the design does not require galvanic isolation.
The downside is that power loss increases as current rises. Even a very small resistor can generate meaningful heat in high-current systems. That is why shunt sensing is often ideal for low-to-mid current precision measurement, but designers frequently move toward magnetic sensing when current, efficiency, or isolation requirements become more demanding.
2. Hall-Effect Current Sensors
Hall-effect current sensors measure the magnetic field generated by current flowing through a conductor. Because they do not depend on a relatively large resistive voltage drop, they can reduce insertion loss and simplify isolation. This makes them highly attractive in motor drives, inverters, battery-connected systems, industrial automation, EV subsystems, renewable-energy equipment, and safety-critical power electronics.
If you want to explore stocked and sourceable Hall-based parts directly, MOZ already has a dedicated Current Sensors category page and a broader Sensors hub that can support both quick sourcing and top-down part discovery.
At the compact end of the market, open-loop Hall devices are popular because they are easy to integrate and keep insertion loss low. A good real-world example is the Honeywell CSLA2GF current sensor, which is positioned for bidirectional AC/DC sensing up to 125 A and fits applications such as power supplies, motor drives, battery systems, and industrial equipment.
Closed-loop Hall-effect sensors are often chosen when designers want better stability and stronger industrial-grade measurement behavior. MOZ’s current sensor listings also surface the Honeywell CSNP661, a 50 A board-mount current sensor that is described as combining closed-loop Hall-effect precision with an industrial-oriented form factor.
On the semiconductor side, Texas Instruments has built out a broad Hall-effect current sensor portfolio that ranges from lower-current isolated devices such as TMCS1100, TMCS1101, TMCS1100-Q1, and TMCS1101-Q1 to reinforced-isolation and higher-performance families such as TMCS1123, TMCS1123-Q1, TMCS1126, TMCS1126-Q1, TMCS1127, TMCS1133, TMCS1143, and the programmable coreless automotive-focused TMCS2100-Q1. In article terms, these parts help show how Hall-effect current sensing scales from compact isolated monitoring to more demanding automotive and industrial power electronics.
Choose open-loop Hall sensors when you want simpler, compact, low-loss current measurement. Choose closed-loop or more advanced isolated Hall devices when the application demands stronger accuracy, faster control response, or more robust industrial performance.
3. Core-Based Magnetic Current Sensors
Core-based magnetic current sensors use a magnetic core to channel flux from the conductor to the sensing element. This improves magnetic coupling and sensitivity, which is especially useful in medium- to high-current systems where isolation and robust measurement are priorities. The tradeoff is that the core adds size, weight, and cost.
This architecture remains common in higher-current industrial environments such as motor drives, welding systems, power conversion cabinets, and energy infrastructure. It is often associated with specialist transducer suppliers whose products are designed for rugged electrical environments and higher current handling.
4. Coreless Magnetic Current Sensors
Coreless magnetic current sensors eliminate the magnetic core and sense the field more directly. That can reduce size, simplify assembly, and improve integration into compact power electronics, but it may also increase sensitivity to external magnetic fields if the design lacks adequate rejection or shielding.
This category matters more today than it did a few years ago because modern power electronics demand smaller, faster, and more integrated sensing solutions. It is especially relevant in EV traction systems, compact industrial power stages, and dense automotive electronics.
5. Current Transformers
Current transformers, or CTs, are widely used for AC-only measurement. They provide electrical isolation, low insertion loss, and a mature installation model, which makes them ideal for energy monitoring, metering, building systems, and industrial AC load measurement.
Split-core current transformers are especially useful when installers need to clamp around an existing conductor without disconnecting wiring. This convenience makes CTs very popular in retrofit energy monitoring and facility management systems.
6. Rogowski Coils
Rogowski coils are flexible current sensors designed for AC and rapidly changing current measurement. They avoid magnetic core saturation and can handle very wide current ranges, which makes them attractive in high-current industrial systems, power distribution, and transient measurement scenarios.
Compared with current transformers, Rogowski coils are often lighter and easier to install around large conductors. However, they usually require signal integration and additional conditioning circuitry, so the total implementation can be more complex.
Current Sensor Comparison Table
| Sensor Type | Measures AC | Measures DC | Isolation | Main Strength | Main Tradeoff |
|---|---|---|---|---|---|
| Shunt Resistor | Yes | Yes | No | High accuracy, low cost | Power loss and heat |
| Hall-Effect | Yes | Yes | Yes | Low loss, isolation, broad use range | Usually less precise than best shunt solutions |
| Core-Based Magnetic | Yes | Yes | Yes | Strong coupling for higher current | Larger size and cost |
| Coreless Magnetic | Yes | Yes | Yes | Compact integration | More sensitive to stray fields |
| Current Transformer | Yes | No | Yes | Excellent for AC monitoring | Cannot measure DC |
| Rogowski Coil | Yes | No | Yes | Wide range and flexible installation | Needs integration/conditioning |

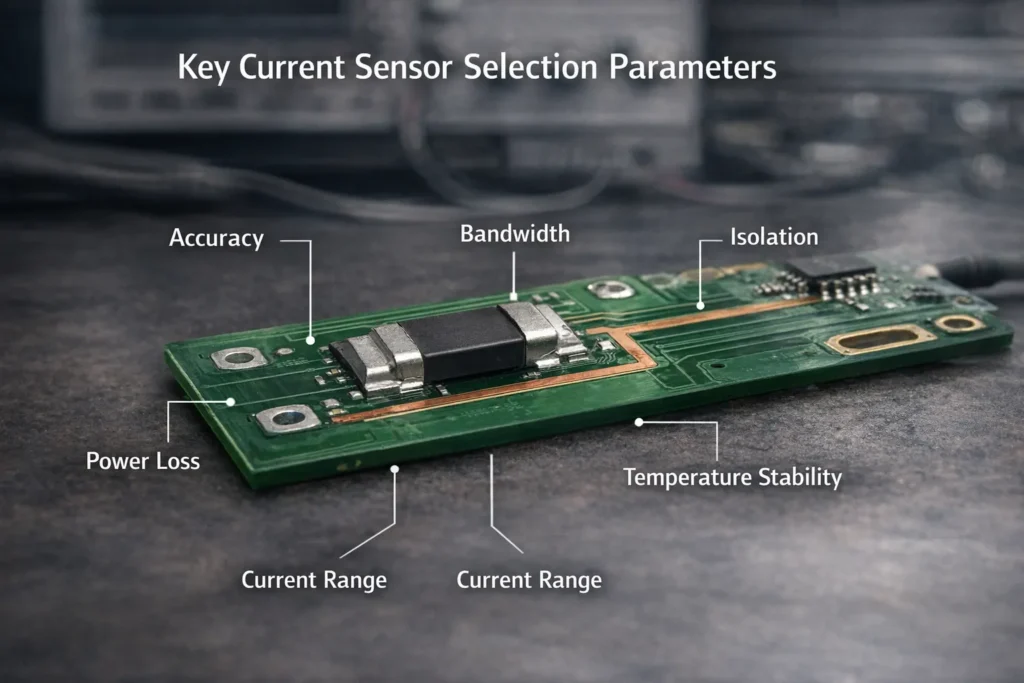

Key Current Sensor Specifications That Matter
Accuracy
Accuracy is usually the starting point. Offset voltage, gain error, linearity, and temperature drift can all affect real-world measurement quality. If the application is battery monitoring, precision metering, or a control loop that depends on stable current feedback, drift and offset are often just as important as nominal sensitivity.
Isolation
Isolation is critical in many industrial, automotive, and energy systems. Basic isolation may be enough for some lower-voltage equipment, but high-voltage designs often require reinforced isolation. This is one of the main reasons Hall-effect and magnetic current sensors are so widely used in power conversion and traction-related applications.
Bandwidth
Bandwidth matters whenever current changes quickly. General monitoring applications may not need especially fast response, but switching power supplies, inverter stages, and real-time protection loops often do.
Power Loss
Power loss is a major system-level consideration. Shunt sensors inherently dissipate power, while magnetic sensors usually reduce insertion loss. In high-current systems, this can make a substantial difference in thermal design, efficiency, and long-term reliability.
Current Range
Some sensors are optimized for low-current precision, while others are meant for heavy industrial or automotive loads. That is why engineers should match the sensing method and package style to the actual current path rather than selecting by category name alone.
How to Choose the Right Current Sensor
The best current sensor depends on the application, not on a single “best” technology.
Choose shunt sensing when
You need low cost, high DC accuracy, and the design can tolerate insertion loss.
Choose Hall sensing when
You need AC/DC measurement, lower loss, and galvanic isolation.
Choose CT or Rogowski when
You are measuring AC current in metering, distribution, or industrial monitoring systems.
Before choosing a current sensor, confirm: current type (AC, DC, or both), required isolation, target accuracy across temperature, expected bandwidth, maximum current, available board space, and whether the end system is industrial, automotive, or consumer.
Common Current Sensor Applications
Battery Management Systems
Battery systems rely on current sensing to estimate state of charge, detect overcurrent, track charge and discharge flow, and protect cells and power stages. Depending on the architecture, designers may use precision shunts for accuracy or isolated Hall sensors when voltage and safety requirements are higher.
Motor Drives and Inverters
Motor control depends heavily on accurate current feedback for commutation, torque control, efficiency, and protection. This is where Hall-effect and magnetic current sensors become especially attractive because they combine isolation with low insertion loss and good performance in dynamic power stages.
Power Supplies and DC-DC Converters
Current sensing helps regulate output, detect overloads, manage thermal behavior, and improve efficiency. Shunt sensing is extremely common here, but faster isolated Hall sensors are increasingly relevant in higher-voltage and higher-power designs.
EV and Automotive Electronics
Vehicle systems use current sensing in onboard chargers, DC-DC converters, auxiliary power modules, e-compressors, battery disconnect units, and traction-related subsystems. If you also cover broader vehicle electronics topics on MOZ, a contextual link to the Body Control Module (BCM) guide can help readers understand how sensing information fits into a larger ECU-controlled system.
Solar and Energy Storage Systems
Current monitoring is essential in inverters, battery racks, combiner boxes, and energy management systems. Reinforced-isolation Hall sensors and higher-current magnetic sensors are often preferred because they help balance efficiency, safety, and system-level visibility.
Industrial Automation and Building Systems
From PLC outputs to energy metering and facility monitoring, current sensors are used to track load behavior, improve safety, and support predictive maintenance. In AC building systems, current transformers and Rogowski coils are especially common.
Related Reading
Current Sensors
Browse MOZ’s current sensor category for Hall-effect and board-mount sensing options.
Honeywell CSLA2GF
A practical example of an open-loop Hall-effect current sensor for AC/DC current sensing up to 125 A.
FAQ
What is the difference between a current sensor and a current transformer?
A current sensor is a broad category that includes shunt sensors, Hall-effect devices, current transformers, Rogowski coils, and other measurement methods. A current transformer is a specific type of AC-only current sensor that uses magnetic coupling to measure alternating current with isolation.
Can a Hall-effect current sensor measure DC current?
Yes. One of the major advantages of Hall-effect current sensors is that they can measure both AC and DC current, which is why they are common in battery systems, motor drives, and automotive power electronics.
Are shunt current sensors more accurate than Hall-effect sensors?
In many cases, yes. Shunt-based sensing often provides higher precision and lower error for DC measurement, especially at lower current levels. However, Hall-effect sensors offer isolation and lower insertion loss, which can make them the better overall choice in many real-world systems.
What are the main types of current sensors?
The main types are shunt resistor current sensors, Hall-effect current sensors, core-based magnetic current sensors, coreless magnetic current sensors, current transformers, and Rogowski coils.
Which current sensor is best for automotive applications?
That depends on the subsystem. Automotive power electronics often use isolated Hall-effect current sensors because they support AC/DC sensing, lower insertion loss, and stronger safety isolation. The best choice depends on current range, accuracy, bandwidth, packaging, and qualification requirements.
Final Thoughts
A current sensor is not just a measurement component. It is a control, protection, and efficiency enabler. Shunt-based sensing remains the best fit for many precision DC measurement tasks, but Hall-effect current sensors have become increasingly important because they offer isolation, lower insertion loss, and a wide range of options from compact basic-isolation parts to reinforced-isolation and more advanced automotive devices.
Current transformers and Rogowski coils remain essential in AC measurement, while core-based and coreless magnetic sensors continue to evolve for industrial and automotive power systems. The right choice ultimately depends on current type, isolation, current range, bandwidth, thermal constraints, board space, and system safety requirements.
For designers, purchasers, and technical buyers, the most useful question is not “What is the best current sensor?” but rather “Which sensing method best fits this exact system?” Once that answer is clear, the product choice becomes much easier.
