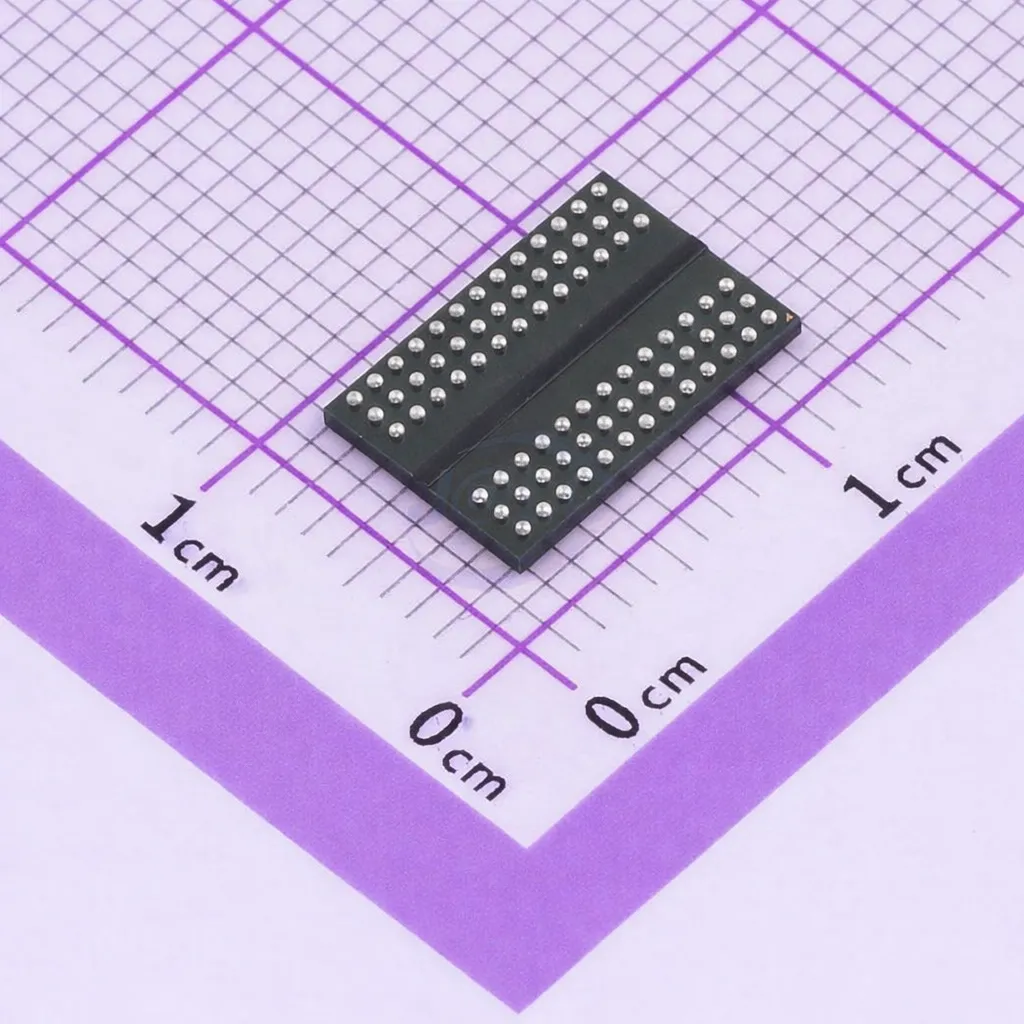

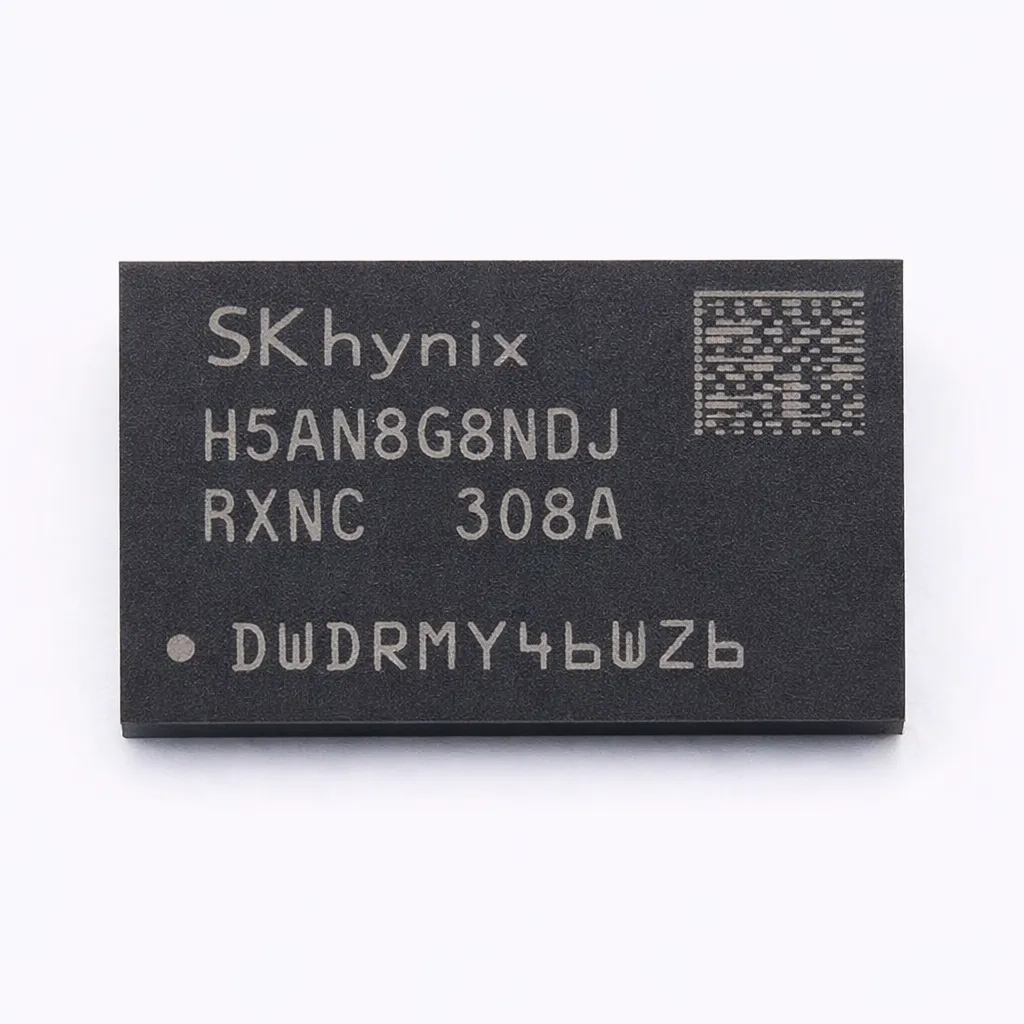

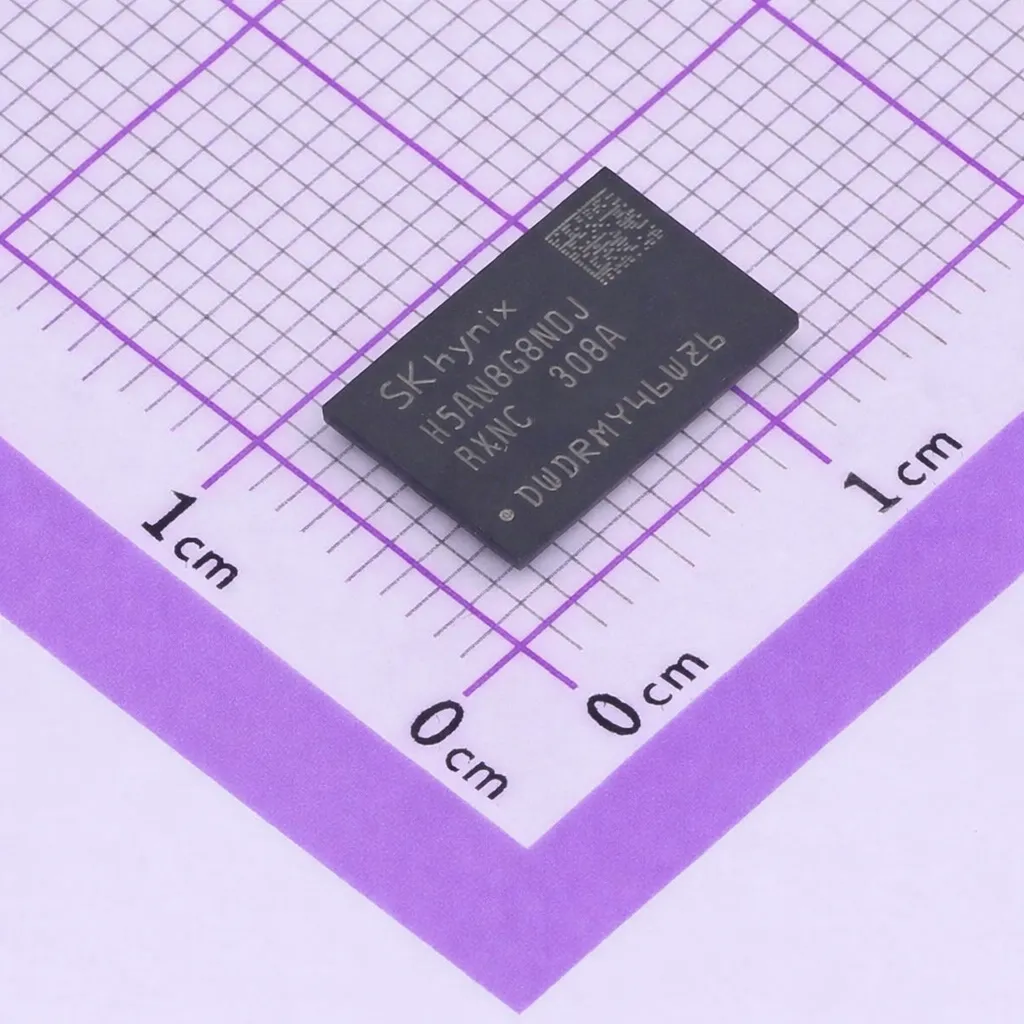

H5AN8G8NDJR-XNC SK Hynix H5AN8G8NDJR-XNC DDR4 8Gb x 8 SDRAM Memory IC1.2V 0°C~85°C FBGA-78 2666MHz

What is SK Hynix H5AN8G8NDJR-XNC?

The SK Hynix H5AN8G8NDJR-XNC is an 8Gb DDR4 SDRAM memory IC designed for high-speed and low-power applications. It supports data transfer rates up to 3200MT/s, operates at 1.2V, and comes in a compact FBGA-78 package. This memory chip is commonly used in PCs, servers, networking equipment, and embedded systems that require reliable and high-bandwidth memory performance.

The SK Hynix H5AN8G8NDJR-XNC is a high-performance 8Gb DDR4 SDRAM memory IC designed to meet the demanding requirements of modern computing, networking, and embedded systems. Manufactured by SK Hynix, one of the world’s leading memory semiconductor suppliers, this component delivers an excellent balance of speed, power efficiency, density, and long-term reliability.

Built on advanced DDR4 architecture, the H5AN8G8NDJR-XNC supports high data transfer rates while operating at a low core voltage of 1.2V, making it an ideal choice for energy-efficient designs without compromising system performance. Its compact FBGA-78 package allows for high-density PCB layouts, enabling designers to maximize memory capacity within limited board space.

This memory IC is widely used in PCs, servers, networking equipment, and embedded platforms, where stable performance and consistent quality are critical.

Key Specifications

• Manufacturer: SK Hynix
• Part Number: H5AN8G8NDJR-XNC
• Memory Type: DDR4 SDRAM
• Density: 8Gb (1G x 8 organization)
• Data Rate: Up to 3200 MT/s (DDR4-3200)
• Supply Voltage: 1.2V (VDD / VDDQ)
• Package Type: FBGA-78
• Mounting Type: Surface Mount (SMT)
• Operating Temperature: 0°C to +85°C (Commercial grade)
• Compliance: RoHS compliant, lead-free

Performance Advantages

High-Speed DDR4 Architecture

The H5AN8G8NDJR-XNC supports DDR4-3200 speeds, delivering significantly higher bandwidth compared to DDR3 solutions. This enables faster data access, reduced latency, and smoother multitasking in performance-intensive applications such as servers, workstations, and high-end embedded systems.

Low Power Consumption

Operating at just 1.2V, this DDR4 memory IC reduces overall system power consumption and heat generation. Lower power requirements make it especially suitable for energy-sensitive applications such as compact embedded devices and data center environments focused on efficiency and thermal optimization.

High Density in a Compact Package

With an 8Gb capacity in an FBGA-78 package, the H5AN8G8NDJR-XNC allows designers to achieve high memory density without increasing PCB footprint. This is particularly beneficial for space-constrained designs such as laptops, single-board computers, and networking hardware.

Proven Reliability

SK Hynix memory products are known for strict quality control and long-term reliability. The H5AN8G8NDJR-XNC undergoes extensive testing to ensure stable operation across its specified temperature and voltage ranges, making it suitable for continuous operation in commercial systems.

Specification Comparison (DDR4 vs DDR3)

Conclusion: The H5AN8G8NDJR-XNC provides superior bandwidth and lower power consumption, making it a clear upgrade path from legacy DDR3 solutions.

SK Hynix H5AN8G8 DDR4 SDRAM Series Overview

The SK Hynix H5AN8G8 series is a family of high-performance DDR4 SDRAM memory ICs offering densities of 8Gb with x8 organization. These devices are designed to support a wide range of data rates, voltage options, and performance grades, making them suitable for PCs, servers, networking equipment, and embedded applications.

Related SK Hynix DDR4 SDRAM Part Numbers

• H5AN8G8NDJR-XNC – 8Gb DDR4 SDRAM, 3200MT/s, 1.2V, FBGA-78

• H5AN8G8NDJR-XN – 8Gb DDR4 SDRAM, high-speed grade, FBGA package

• H5AN8G8NDJR-UHC – 8Gb DDR4 SDRAM, alternative speed/bin option

• H5AN8G8NCJR-XNC – 8Gb DDR4 SDRAM, different timing specification

• H5AN8G8NMJR-XNC – 8Gb DDR4 SDRAM, mobile/low-power optimized version

Typical Applications

• Desktop PCs and Laptops – Used in DDR4 DIMM and SO-DIMM modules
• Servers and Data Centers – High bandwidth memory for enterprise workloads
• Networking Equipment – Routers, switches, and communication infrastructure
• Embedded Systems – Industrial controllers, automation systems, and edge devices
• Consumer Electronics – Set-top boxes, gaming hardware, and smart devices

Cross Reference & Alternative Part Numbers

The SK Hynix H5AN8G8NDJR-XNC can be cross-referenced with other 8Gb DDR4 SDRAM memory ICs that offer similar performance, capacity, and package options. These alternative parts are commonly evaluated by engineers and procurement teams for compatibility, availability, or cost optimization.

Compatible and Alternative DDR4 Memory ICs

• SK Hynix H5AN8G8NDJR-XN
  8Gb DDR4 SDRAM with similar architecture and FBGA package, suitable for equivalent system designs.

• SK Hynix H5AN8G8NCJR-XNC
  8Gb DDR4 SDRAM with different timing specifications, often used as a functional alternative depending on controller requirements.

• SK Hynix H5AN8G8NMJR-XNC
  8Gb DDR4 SDRAM optimized for lower power or mobile-oriented platforms.

• Samsung K4A8G085WB Series
  8Gb DDR4 SDRAM memory ICs with comparable density and speed grades, widely used in PC and server memory modules.

• Micron MT40A1G8 Series
  8Gb DDR4 SDRAM offering similar capacity and performance for embedded and enterprise applications.

Cross Reference Notes for Buyers and Engineers

• All listed alternatives are DDR4 SDRAM, 8Gb density, x8 organization

• Final compatibility depends on speed grade, timing, and memory controller support

• Always verify datasheet parameters before direct replacement in production designs

What is H5AN8G8NDJR-XNC used for?

H5AN8G8NDJR-XNC is used as main system memory in DDR4-based platforms, including desktop PCs, servers, networking devices, and embedded systems. Its high bandwidth and low power consumption make it suitable for data-intensive and energy-efficient designs.

For Server and Data Center Designs

The H5AN8G8NDJR-XNC is well-suited for scalable memory architectures requiring high throughput and stability. Pairing multiple devices enables large-capacity memory modules optimized for virtualization, cloud computing, and AI workloads.

For Embedded and Industrial Systems

Its low power consumption and compact footprint make this memory IC ideal for embedded designs that require reliable performance under continuous operation while minimizing thermal stress.

For Networking Hardware

High-speed data access is critical in networking applications. This DDR4 memory IC supports fast packet processing and buffering, improving overall system responsiveness.

FAQ About SK Hynix H5AN8G8NDJR-XNC Memory IC

Is H5AN8G8NDJR-XNC compatible with standard DDR4 controllers?
Yes. It fully complies with JEDEC DDR4 standards and is compatible with mainstream DDR4 memory controllers.

Can this IC be used to build DIMM or SO-DIMM modules?
Yes. This part is commonly used by manufacturers to build DDR4 DIMM and SO-DIMM memory modules.

What is the difference between x8 and x16 memory organization?
The H5AN8G8NDJR-XNC uses an x8 organization, which is widely supported and offers better flexibility for multi-chip memory configurations.

Is this memory suitable for industrial or automotive use?
This specific model is rated for commercial temperature range (0°C to +85°C). For automotive or extended temperature applications, an industrial or automotive-grade variant should be selected.

How is this product typically packaged for shipment?
The H5AN8G8NDJR-XNC is usually supplied in tray packaging, suitable for automated SMT assembly and volume production.

Is SK Hynix H5AN8G8NDJR-XNC available for bulk orders?

Yes. SK Hynix H5AN8G8NDJR-XNC is commonly available for bulk and volume orders. It is supplied in tray packaging and suitable for automated SMT assembly, making it ideal for mass production and long-term supply programs.

Why Choose SK Hynix H5AN8G8NDJR-XNC?

• Manufactured by a globally trusted memory supplier
• High-speed DDR4-3200 performance
• Low-voltage, energy-efficient operation
• Compact FBGA package for high-density designs
• Ideal for PCs, servers, networking, and embedded applications

For datasheets, pin configuration diagrams, pricing, or bulk availability, the SK Hynix H5AN8G8NDJR-XNC is a reliable and future-proof DDR4 memory solution for modern electronic systems.
