HFJT1-10GHPE-L12RL HFJT1-10GHPE-L12RL HALO 10G PoE RJ45 FastJack Connector CONN JACK 1PORT PCB

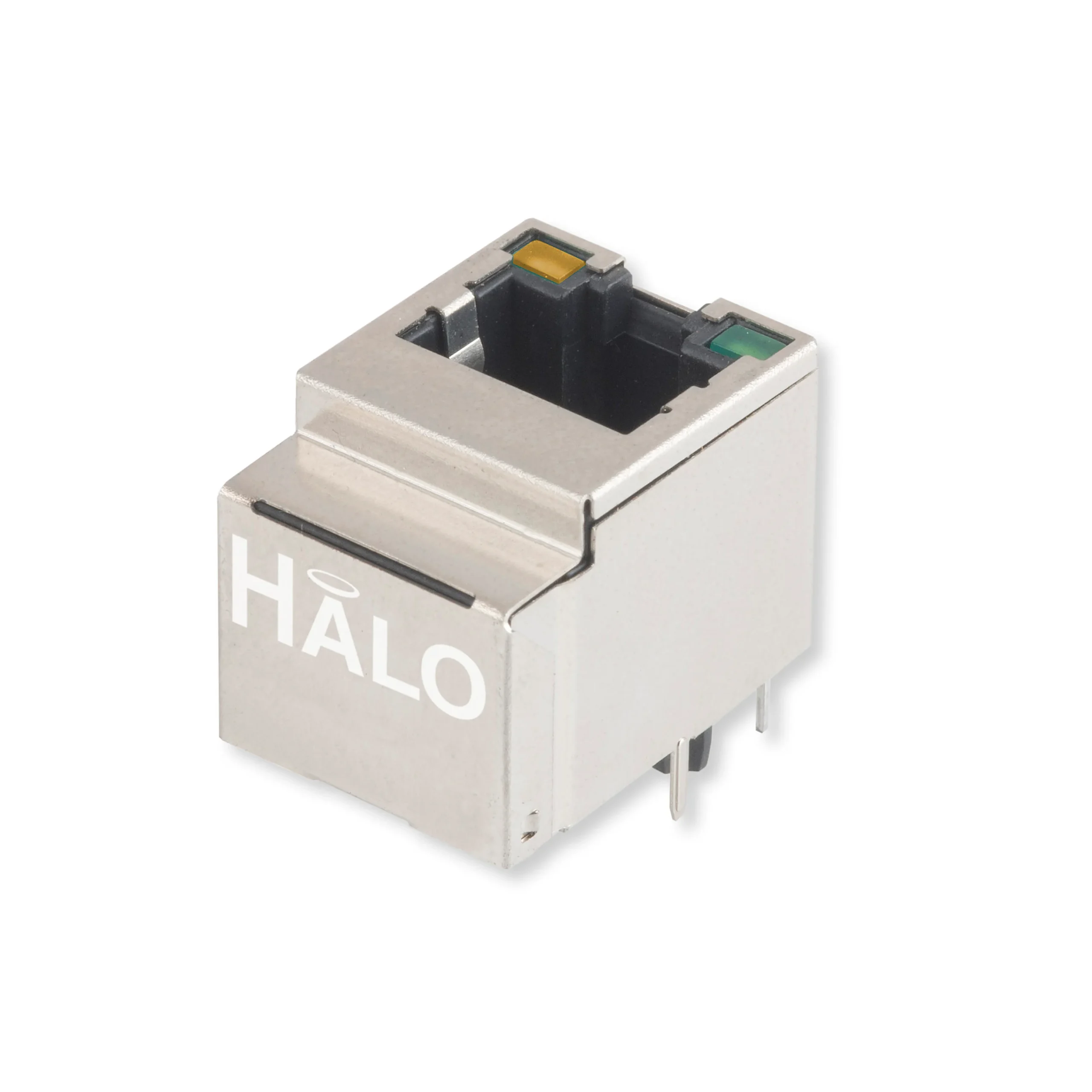

The HFJT1-10GHPE-L12RL from HALO Electronics is a FastJack™ 1×1 tab-up integrated RJ45 connector designed for high-speed 10G Ethernet and Power over Ethernet applications. It combines an RJ45 jack, integrated magnetics, shielding, and LED indicators in a through-hole PCB-mount package, helping simplify Ethernet interface design for industrial, networking, embedded, and communication equipment.

This connector supports 10G Base-T and AutoMDIX applications and is compliant with IEEE 802.3an, 802.3af, 802.3at, and 802.3bt requirements. With extended operating temperature support from -40°C to +85°C, shielded construction with EMI fingers, and Green/Yellow LED indicators, HFJT1-10GHPE-L12RL is suitable for demanding Ethernet hardware designs that require stable signal integrity, PoE capability, and reliable board-level connectivity.

Key Features

• HALO FastJack™ integrated RJ45 connector with magnetics
• 1-port RJ45, 1×1 tab-up configuration
• Designed for 10G Ethernet / 10G Base-T applications
• Supports PoE, PoE+, and 4-pair PoE designs
• IEEE 802.3an / af / at / bt compliant
• Extended temperature version: -40°C to +85°C
• Green / Yellow LED configuration
• Shielded housing with EMI finger for improved noise protection
• Through-hole PCB mounting with solder termination
• 1500Vrms Hi-Pot tested
• Compatible with current-drive and voltage-drive PHYs
• UL60950 and UL62368 recognized series

Technical Specifications

Applications

• 10G Ethernet network interfaces
• PoE and PoE+ enabled devices
• 4-pair PoE equipment
• Industrial Ethernet modules
• Switches, routers, and gateways
• Embedded networking boards
• IP cameras and security systems
• Wireless access points
• Communication and telecom equipment
• High-speed data acquisition and control systems

Product Description

HFJT1-10GHPE-L12RL is a high-performance HALO FastJack™ RJ45 connector engineered for 10 Gigabit Ethernet designs requiring integrated magnetics and Power over Ethernet support. Its 1-port tab-up configuration provides a compact and reliable Ethernet interface for PCB-mounted applications, while the shielded housing with EMI fingers helps reduce electromagnetic interference in high-speed data environments.

The connector supports IEEE 802.3an for 10G Ethernet and IEEE 802.3af/at/bt for PoE, PoE+, and 4PPoE designs. The extended temperature rating makes it suitable for industrial and commercial equipment that may operate in harsher environments. Green and Yellow LEDs provide convenient link and activity indication, helping simplify front-panel Ethernet status visibility.

With through-hole solder mounting, integrated magnetic components, 1500Vrms Hi-Pot testing, and compatibility with both current-drive and voltage-drive PHYs, HFJT1-10GHPE-L12RL is a practical choice for engineers designing robust 10G Ethernet ports with PoE capability.

Summary

HFJT1-10GHPE-L12RL is a HALO FastJack™ 10G PoE RJ45 connector designed for high-speed Ethernet and power-enabled networking applications. It offers integrated magnetics, shielded construction, Green/Yellow LEDs, through-hole PCB mounting, and extended temperature operation from -40°C to +85°C, making it suitable for industrial Ethernet, networking equipment, embedded systems, and PoE-enabled devices.
