W2D250-GA02-10 ebm-papst W2D250-GA02-10 3-Phase AC Axial Fan | 400VAC | 618 CFM | IP44 | 3000 RPM
Industrial 3-phase axial fan with 618.5 CFM airflow, 400VAC operating voltage, and ball bearing construction. IP44-rated for dust/moisture resistance—ideal for HVAC and machinery cooling.
Key Features:
✅ High-Speed 3000 RPM Motor – Efficient airflow (618.5 CFM) for industrial applications
✅ Robust 3-Phase 400VAC Design – Stable power for continuous operation
✅ IP44 Protection – Resistant to dust and splashing water
In Stock
Request a Quoteebm-papst W2D250-GA02-10 3-Phase AC Axial Fan
High-Performance Industrial Ventilation | 400VAC | 268×268×93mm

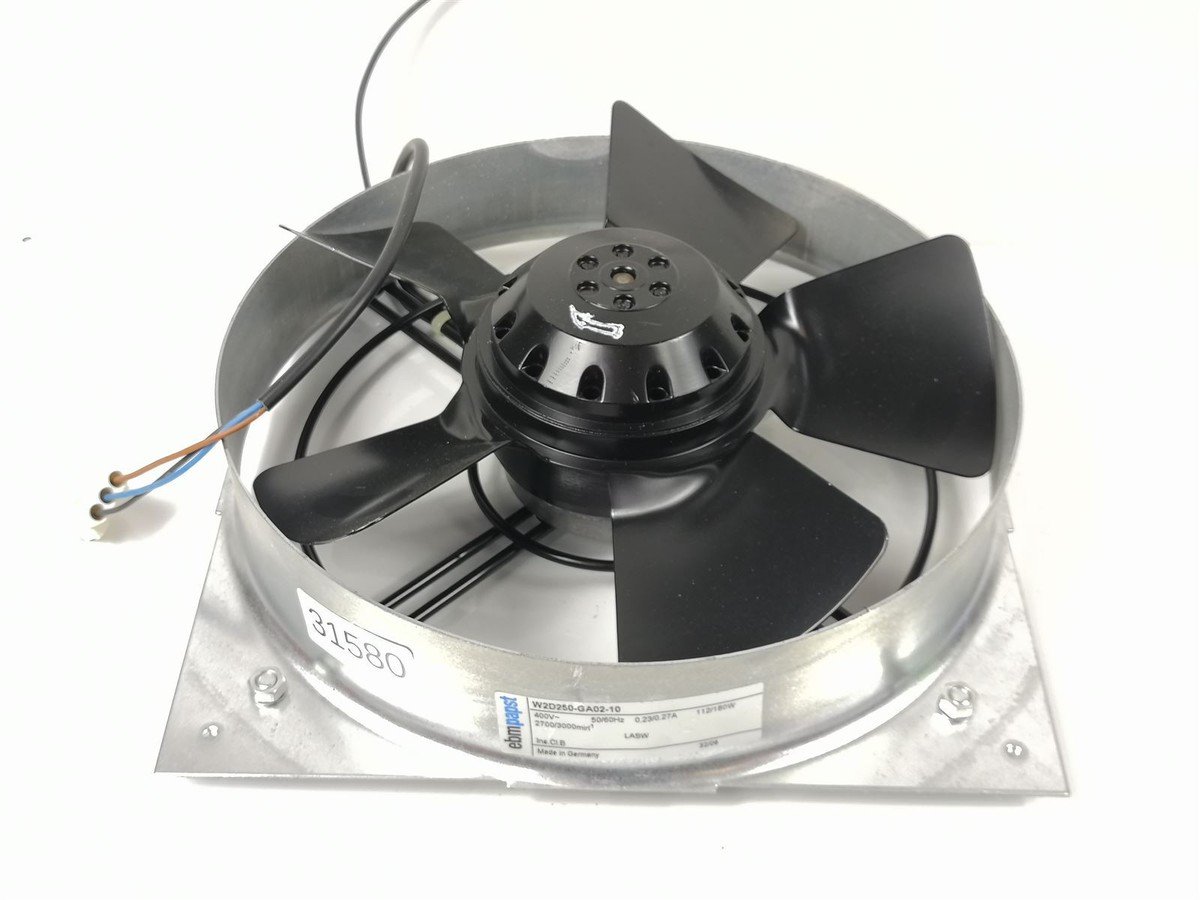

The ebm-papst W2D250-GA02-10 is a heavy-duty 3-phase AC axial fan engineered for industrial cooling, HVAC systems, and equipment ventilation. Designed with a 400VAC motor and 3000 RPM speed, this fan delivers a 618.5 CFM (17.32 m³/min) airflow at 280 Pa (1.12 inH₂O) static pressure, making it ideal for environments requiring high-pressure airflow in compact spaces.
Built with galvanized steel housing and 5-blade steel impeller, this IP44-rated fan ensures durability in harsh conditions while maintaining low power consumption (180W). Its ball bearing system extends operational life, and 3-phase power provides stable performance for 24/7 industrial use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | W2D250-GA02-10 |
| Motor Type | 3-Phase AC (M2D068-DF) |
| Voltage/Frequency | 400VAC, 50/60 Hz |
| Airflow | 618.5 CFM (17.32 m³/min) |
| Static Pressure | 280 Pa (1.12 inH₂O) |
| Speed | 3000 RPM (±10%) |
| Power Consumption | 180W (60Hz) / 112W (50Hz) |
| Current Draw | 0.27A (60Hz) / 0.23A (50Hz) |
| Starting Current | 0.75A |
| Frame Material | Galvanized Steel |
| Blade Material | Steel (Black Painted) |
| Guard Grill | Phosphated Steel, Plastic-Coated |
| Weight | 3.6 kg |
| Protection Rating | IP44 (Position-Dependent) |
| Operating Temperature | -25°C to +50°C |
| Bearing Type | Ball Bearing |
| Termination | 3-Pin Rectangular Connector |
Key Advantages
1. High-Efficiency Airflow
- 618.5 CFM airflow for targeted cooling in enclosures or machinery
- 3000 RPM speed optimizes air movement with low noise
- 280 Pa back pressure resistance for ventilation under load
2. Industrial-Grade Construction
✔ Galvanized Steel Housing – Corrosion-resistant for humid/dirty environments
✔ 5-Blade Steel Impeller – Balanced for vibration reduction
✔ IP44 Protection – Blocks dust and water splashes
3. Reliable 3-Phase Motor
✔ Low Power Draw (180W) – Energy-efficient operation
✔ Ball Bearings – 50,000+ hour lifespan under normal conditions
✔ CE-Compliant – Meets EN 60335-1 safety standards
4. Safety & Control
✔ Overcurrent Protection – Prevents motor burnout
✔ Wide Voltage Tolerance (400VAC ±10%) – Stable in fluctuating grids
✔ S1 Continuous Duty Rating – Suitable for 24/7 operation
Applications
Industrial Equipment Cooling
- CNC machines, laser cutters, and compressors
- Control cabinet ventilation
- Welding fume extraction
HVAC & Air Handling
- Commercial ventilation systems
- Ducted exhaust applications
Specialized Uses
- Agricultural drying systems
- Lab equipment cooling
- Food processing ventilation
W2D250 Series Comparison
| Model | Voltage | Airflow | Power | Current | Speed | Key Difference |
|---|---|---|---|---|---|---|
| W2D250-GA02-10 | 400VAC | 618.5 CFM | 180W | 0.27A | 2300 RPM | High-airflow HVAC |
| W2D250-GA02-07 | 400VAC | 550 CFM | 150W | 0.22A | 2300 RPM | Energy-efficient systems |
| W2D250-HH14-09 | 400/460VAC | – | 125-195W | 0.21-0.26A | 2300-2800 RPM | Dual-voltage industrial |
| W2D250-GA08-08 | 380VAC | – | 110W | 0.19A | 2550 RPM | Steel frame, 5-blade design |
Why Choose ebm-papst?
🔹 German Engineering – Precision motors since 1963
🔹 Global Certifications – CE, RoHS, and industry-specific compliance
🔹 Extended Lifespan – Robust materials and ball bearings
Ordering & Support:
- Bulk pricing for OEM/industrial buyers
- Custom grilles, voltages, or connectors available
- Technical drawings and datasheets on request
✔ 3-Year Warranty
✔ Global Shipping
✔ Compatible with MODBUS Controls (Optional)
