W2D250-GA02-07 ebm-papst W2D250-GA02-07 400VAC 3-Phase Tubeaxial Fan | 618.5 CFM | 280Pa Static Pressure | IP44
Industrial-grade 400VAC 3-phase tubeaxial fan delivers 618.5 CFM airflow at 280Pa pressure. Features 5-blade steel construction, IP44 protection, and ball bearings. CE/EAC certified for demanding applications.
Key Features:
✅ 618.5 CFM Airflow – High-volume ventilation for HVAC/industrial systems
✅ 280Pa Static Pressure – Maintains performance in ducted/restricted environments
✅ Energy-Efficient 3-Phase Motor – 180W power with 29.5% overall efficiency (EU 327/2011 compliant)
In Stock
Request a Quoteebm-papst W2D250-GA02-07 3-Phase Tubeaxial Fan – High-Performance Industrial Fan for HVAC and Machine Cooling

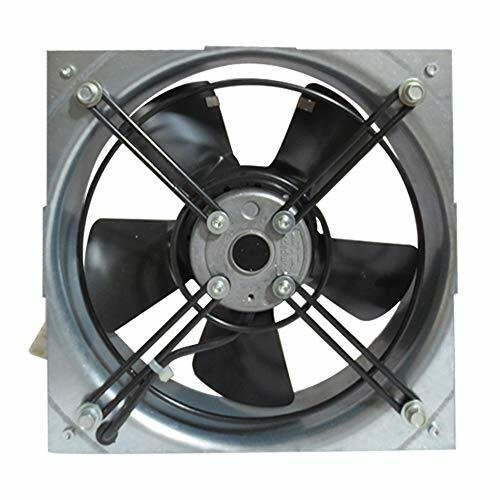

The ebm-papst W2D250-GA02-07 is a 268×268mm square tubeaxial fan designed for high-airflow, high-pressure industrial applications. Operating at 400VAC 3-phase power, this fan delivers 618.5 CFM (17.32 m³/min) airflow with 280Pa static pressure, making it ideal for HVAC systems, machinery cooling, and exhaust ventilation.
Certified to CE and EAC standards, the W2D250-GA02-07 features a 5-blade steel impeller, IP44 protection, and ball bearings for reliable operation in temperatures from -25°C to 50°C. Its energy-efficient motor meets EU Regulation 327/2011 with 29.5% overall efficiency, reducing operational costs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | W2D250-GA02-07 |
| Motor Type | M2D068-DF (3-Phase) |
| Voltage/Frequency | 400VAC, 50/60Hz |
| Connection | Y (Wye) |
| Airflow | 618.5 CFM (17.32 m³/min) |
| Static Pressure | 280 Pa (1.12 in H₂O) |
| Power Input | 180W (112W at 50Hz) |
| Current Draw | 0.27A (0.23A at 50Hz) |
| Speed | 2700–3000 RPM |
| Bearing Type | Ball Bearing |
| Frame Material | Steel (Phosphated + Black Coated) |
| Blade Material | Galvanized Steel (5 Blades) |
| Protection Rating | IP44 |
| Insulation Class | B (130°C) |
| Termination | 3-Position Rectangular Connector |
| Weight | 2.89 kg |
| Approvals | CE, EAC |
Key Advantages
1. High Airflow & Pressure Performance
- 618.5 CFM airflow ensures rapid ventilation in large spaces
- 280Pa static pressure maintains efficiency in ducted systems
- 3000 RPM at 60Hz for variable speed control
2. Industrial-Grade Construction
✔ Galvanized Steel Blades – Corrosion-resistant for humid/chemical environments
✔ Phosphated Steel Frame – Enhances durability and wear resistance
✔ Ball Bearings – 50,000+ hour lifespan with minimal maintenance
3. Energy Efficiency & Compliance
✔ EU 327/2011 Compliant – 29.5% overall efficiency reduces energy costs
✔ Low Starting Current (0.75A) – Prevents electrical system overload
✔ Touch Current <0.75mA – Safe for operator handling
4. Smart Design Features
✔ IP44 Protection – Resists dust and water splashes (e.g., washdown areas)
✔ Clockwise Rotation – Standardized airflow direction for easy integration
✔ Lateral Cable Exit – Simplifies wiring in confined spaces
Applications
HVAC Systems
- Commercial building ventilation
- Warehouse air circulation
- Ducted exhaust systems
Industrial Cooling
- CNC machine tool cooling
- Transformer/rectifier cooling
- Industrial oven exhaust
Special Environments
- Food processing (moisture-resistant design)
- Chemical plants (corrosion-resistant materials)
- Cold storage units (-25°C capable)
W2D250 Series Comparison
| Model | Voltage | Airflow | Power | Current | Speed | Key Difference |
|---|---|---|---|---|---|---|
| W2D250-GA02-10 | 400VAC | 618.5 CFM | 180W | 0.27A | 2300 RPM | High-airflow HVAC |
| W2D250-GA02-07 | 400VAC | 550 CFM | 150W | 0.22A | 2300 RPM | Energy-efficient systems |
| W2D250-HH14-09 | 400/460VAC | – | 125-195W | 0.21-0.26A | 2300-2800 RPM | Dual-voltage industrial |
| W2D250-GA08-08 | 380VAC | – | 110W | 0.19A | 2550 RPM | Steel frame, 5-blade design |
Why Choose the W2D250-GA02-07?
🔹 Proven Reliability – German-engineered motor with 50Hz/60Hz compatibility
🔹 Easy Maintenance – Sealed ball bearings eliminate lubrication needs
🔹 Flexible Installation – Horizontal/vertical mounting options
Ordering Notes:
- Bulk packaged for industrial procurement
- Rectangular connector for secure termination
✔ 618.5 CFM airflow | ✔ 280Pa pressure | ✔ CE/EAC certified
