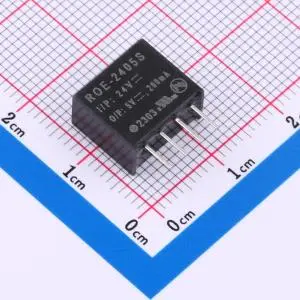

ROE-2405S Recom Power ROE-2405S Isolated Through Hole Module DC DC Converter

The RECOM POWER ROE-2405S is a compact, cost-effective, and highly reliable unregulated isolated DC/DC converter designed for general-purpose power isolation and voltage matching applications. Housed in a 4-pin SIP (Single Inline Package), this 1W converter provides efficient power conversion with robust industrial-grade performance. Featuring a 1:1 input-output ratio, it converts a 24V input to a stable 5V DC output at 200mA, making it suitable for various low-power industrial and ITE (Information Technology Equipment) applications.

With 1kVDC isolation, high efficiency (up to 80%), and an extended operating temperature range of -40??C to +85??C, the ROE-2405S ensures reliable performance in demanding environments. Additionally, it complies with key safety standards, including UL60950-1 and CAN/CSA C22.2 No. 60950-1-07, ensuring suitability for industrial, medical, and communications systems requiring isolated power supplies.

Key Features & Benefits

1. Industrial-Grade Performance & Reliability

✔ Wide Operating Temperature Range: Operates from -40??C to +85??C without derating, ideal for harsh industrial conditions.
✔ 1kVDC Isolation: Provides galvanic isolation between input and output, protecting sensitive electronics from voltage spikes and ground loops.
✔ Unregulated Output: Ensures simple and effective power conversion without complex control circuitry, reducing cost and footprint.

2. High Efficiency & Low-Cost Solution

✔ 80% Typical Efficiency: Optimizes power conversion, reducing energy waste and heat generation.
✔ Low-Cost 1W Design: Ideal for budget-sensitive applications without compromising performance.

3. Compact & Industry-Standard Design

✔ SIP4 Package (11.5mm x 6mm x 10mm): Space-efficient through-hole design for easy PCB integration.
✔ Standard Pinout: Simplifies design-in and replacement in existing systems.

4. Safety & Compliance

✔ Certified for ITE & Industrial Use: Meets UL60950-1 and CAN/CSA C22.2 No. 60950-1-07 standards, ensuring safety and reliability.
✔ No SVHC (Substances of Very High Concern) as of Jan 2025: Compliant with RoHS and environmental regulations.

5. Robust Power Handling

✔ Maximum Capacitive Load: 470??F: Supports stable operation with moderately sized filter capacitors.
✔ 200mA Output Current: Sufficient for driving low-power digital ICs, sensors, and control circuits.

Applications

The ROE-2405S is widely used in applications requiring isolated voltage conversion in industrial automation, IT/telecommunications, and embedded systems, such as:
✅ Industrial Control Systems: PLCs, motor drives, and sensor interfaces requiring 5V logic supply.
✅ ITE & Communication Devices: Isolated power for data acquisition, RS-485, and CAN bus circuits.
✅ Medical & Test Equipment: Auxiliary power for diagnostic and monitoring systems.
✅ Embedded & IoT Devices: Low-power microcontrollers and wireless modules.

Technical Specifications

Alternative Models in ROE Series

For different input and output requirements, RECOM offers multiple variants in the ROE Series:

Why Choose the ROE-2405S?

1. Cost-Effective: Provides reliable power at a competitive price.
2. Compact & Easy to Integrate: Small SIP package fits tight spaces.
3. Industrial Durability: Operates in extreme temperatures without performance loss.
4. Safety-Certified: Meets stringent UL/CSA standards for reliable operation.

Where to Use & When to Consider Alternatives

✔ Best for: Basic 5V isolated supply in low-power industrial and ITE applications.
✔ Consider alternatives if:

• You need?regulated output (e.g., R-78xx series)
• Higher power is required (e.g.,?ROP series for 3W+)
