W4E350-DA20-52 Ebmpapst W4E350-DA20-52 AC Fan | 1935 CFM | IP44 | 115VAC | Ball Bearing
The ebm-papst W4E350-DA20-52 is a heavy-duty 115VAC axial fan delivering 1935 CFM airflow at 1340 RPM. Features ball bearings, IP44 protection, and diecast aluminum housing for industrial cooling.
- Massive 1935 CFM Airflow – High-volume ventilation
- Ball Bearing Motor – Extended service life (193W power)
- Thermal Protection – Auto-reset temperature sensor

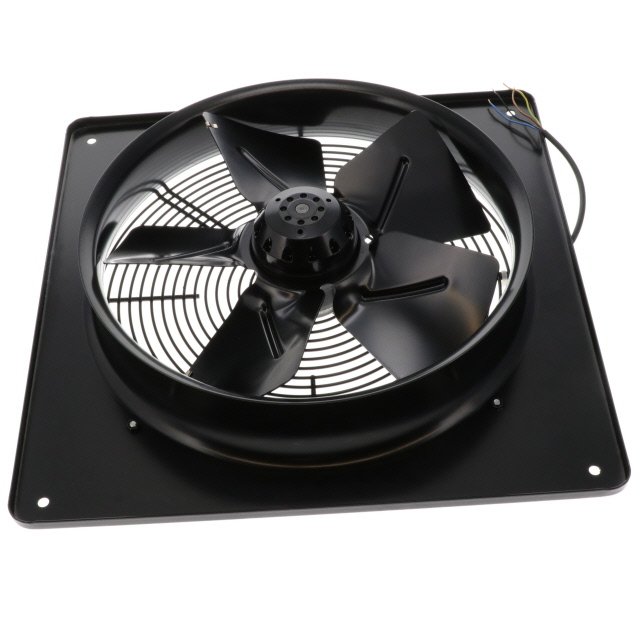

ebm-papst W4E350-DA20-52 High-Performance Industrial AC Axial Fan
The ebm-papst W4E350-DA20-52 is a premium industrial axial fan designed for high-capacity airflow in demanding environments. With a 115VAC motor, 1935 CFM (54.8 m³/min) airflow, and 1340 RPM speed, this fan excels in applications requiring heavy-duty cooling.
Key Applications:
✔ Large-scale HVAC systems
✔ Industrial machinery cooling
✔ Power electronics & transformers
✔ Factory ventilation
Constructed with a diecast aluminum housing and ball bearings, the W4E350-DA20-52 ensures durability and reliability under continuous operation. Its IP44 rating provides protection against dust and water splashes.
Key Features & Benefits
✔ High Airflow Performance (1935 CFM)
- Optimized for large-space ventilation
- Static pressure: 0.363 in H2O (90.5 Pa) – Effective against airflow resistance
✔ Industrial-Grade Construction
- Diecast aluminum frame – Lightweight yet robust
- Ball bearings – Maintenance-free with long lifespan
✔ Built-in Thermal Protection
- Auto-reset temperature sensor prevents motor burnout
✔ Easy Electrical Integration
- 4-wire leads with splice terminals for secure connections
Technical Specifications
| Attribute | Specification |
|---|---|
| Air Flow | 1935 CFM (54.8 m³/min) |
| Bearing Type | Ball |
| Capacitance | 20 µF |
| Current Rating | 1.68 A |
| Fan Type | AC |
| Frequency | 60 Hz |
| IP Rating | IP44 |
| Maximum Operating Temp. | 65°C |
| Minimum Operating Temp. | -25°C |
| Nominal Voltage | 115 VAC |
| Power Rating | 193 W |
| Rotation | Clockwise (CW) |
| Series | W4E350 Series |
| Size/Dimension | 350×350×80mm (13.8×13.8×3.2 in) |
| Speed (RPM) | 1340 |
| Static Pressure | 0.363 in H2O (90.5 Pa) |
| Termination | 4 Wire Leads with Splice Terminals |
| Voltage Rating | 115 V |
| Weight | 6600 g (14.55 lbs) |
W4E350 Series Overview
The ebm-papst W4E350 Series comprises heavy-duty axial fans engineered for industrial ventilation and high-static-pressure applications.
Series-Wide Features:
✔ Ball bearing motors for longevity
✔ Diecast aluminum housings for durability
✔ IP44 protection against dust/water
✔ 115VAC/230VAC voltage options
W4E350 Series Model Comparison
| Model | Voltage | Airflow | Static Press. | RPM | Power | Key Feature |
|---|---|---|---|---|---|---|
| W4E350-DA20-52 | 115VAC | 1935 CFM | 90.5 Pa | 1340 | 193W | Highest airflow in series |
| W4E350-CN25-70 | 115VAC | 1750 CFM | 55.0 Pa | 1390 | 215W | Round frame design |
| W4E350-DA06-52 | 230VAC | 1950 CFM | 90.5 Pa | 1550 | 195W | 230VAC alternative |
| W4E350-DP18-72 | 115VAC | 1800 CFM | 60.0 Pa | 1590 | 200W | High-speed option |
🔹 Best for Airflow: W4E350-DA20-52 (1935 CFM @ 1340 RPM)
🔹 Best for Static Pressure: W4E350-DA20-52 & DA06-52 (90.5 Pa)
🔹 Best for 230V Systems: W4E350-DA06-52
FAQ (Frequently Asked Questions)
Q1: What’s the difference between IP44 and higher ratings?
A:
- IP44: Resists dust (>1mm) and water splashes (all directions). For harsher conditions (e.g., water jets), consider IP55+ models.
Q2: Can this W4E350-DA20-52 fan be speed-controlled?
A: Yes—use a triac-based AC motor controller (external) for RPM adjustment.
Q3: How does W4E350-DA20-52 compare to EC fans?
A:
✔ AC fans (W4E350): Higher initial torque, simpler control
✔ EC fans: More energy-efficient, variable-speed capable
Q4: What maintenance of W4E350-DA20-52 AC Fan is required?
A: None—sealed ball bearings are lubricated for life.
Q5: Is W4E350-DA20-52 suitable for outdoor use?
A: Limited—IP44 resists rain splashes but isn’t waterproof. For outdoor use, choose IP55+.
Q6: What’s the typical lifespan of W4E350-DA20-52?
A: 50,000+ hours under normal conditions (40°C ambient).
Why Choose the W4E350-DA20-52?
✅ Unmatched airflow (1935 CFM) for large-scale cooling
✅ Industrial durability (diecast aluminum + ball bearings)
✅ Thermal protection against overloads
✅ Certified safe (UL/CSA compliant)
Ideal for factory ventilation, HVAC, and heavy machinery, this fan balances power, reliability, and efficiency.
Need Higher Voltage?
For 230VAC operation, the W4E350-DA06-52 offers similar performance with lower current draw.
