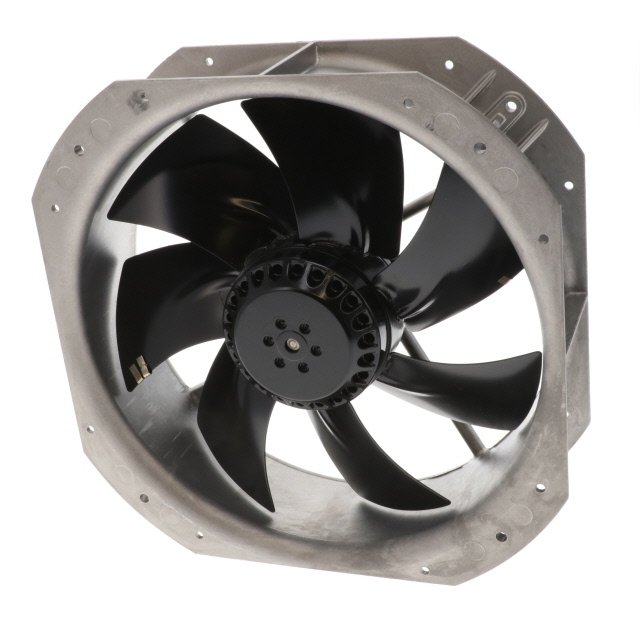

W2E200-HK38-01A ebm-papst W2E200-HK38-01A AC Axial Fan | 230V Industrial Fan, Ball Bearing, 606 CFM
ebm-papst W2E200-HK38-01A is a 230V AC axial fan delivering 606 CFM airflow with ball bearings and die-cast aluminum housing. Ideal for HVAC, heavy machinery, and industrial cooling. Explore W2E200 Series variants for optimized airflow solutions.
Key Features
🔹 High Airflow Capacity: 606 CFM (16.97 m³/min) for efficient industrial cooling.
🔹 Durable Construction: Ball bearings and die-cast aluminum frame ensure longevity (50,000+ hours).
🔹 Wide Operating Range: -40°C to +80°C ambient temperature resistance, suitable for extreme environments.
In Stock
Request a Quoteebm-papst W2E200-HK38-01A AC Axial Fan – High-Performance Industrial Cooling
The W2E200-HK38-01A is part of ebm-papst’s W2E200 series, a line of 230V AC axial fans designed for industrial, HVAC, and server cooling. With 606 CFM airflow at 2800 RPM, this fan ensures reliable ventilation in high-demand environments.
Technical Specifications (Product Attributes)
| Parameter | Specification |
|---|---|
| Manufacturer | ebm-papst Inc. |
| Series | W2E200 (Industrial AC Axial Fans) |
| Voltage Rating | 230V AC (±10%) |
| Airflow | 606 CFM (16.97 m³/min) |
| Static Pressure | 0.381 in H2O (95 Pa) |
| Noise Level | 61 dB(A) |
| Speed | 2800 RPM (Fixed Speed) |
| Power Consumption | 80W |
| Current Rating | 0.35A |
| Bearing Type | Ball Bearing (Maintenance-Free) |
| Frame Material | Die-Cast Aluminum |
| Blade Material | Coated Steel (7 Sickle Blades) |
| Mounting | Wall Ring Design (Square Frame) |
| Protection Rating | IP44 (Dust & Splash Resistant) |
| Operating Temp. | -40°C to +80°C |
| Certifications | UL, CE, CSA, CCC, GOST, VDE |
| Termination Style | Terminal Block (+ Optional Cable Glands) |
W2E200 Series Overview
Series Highlights
✔ Robust Build: Aluminum housing + steel blades for longevity.
✔ Ball Bearings: Lower friction, higher lifespan vs. sleeve bearings.
✔ IP44 Protection: Resists dust and moisture ingress.
✔ Versatile Mounting: Wall ring design suits enclosure/direct mounting.
Other Models in W2E200 Series
| Model | Key Differences | Applications |
|---|---|---|
| W2E200-HH38-13 | Higher CFM (650 CFM), 3-phase motor | Factory Ventilation |
| W2E200-HK86-01 | Lower RPM (2400), Reduced Noise (55 dB) | Office HVAC Units |
| W2E200-CH38-01 | Thermal Fuse Protection | Electronics Cooling |
| W2E200-CF02-02 | Reverse Rotation (Clockwise) | Exhaust Systems |
Recommended Alternatives
W3G250-HK35-11 – Higher airflow (1120 CFM) 115V variant
W3G200-HD01-03 – Similar CFM (590 CFM) with compact frame
Applications
Industrial Equipment Cooling
CNC machines, compressors, welding cabinets.
Data Center & Server Cooling
Rack-mounted ventilation (compatible with ducting).
Commercial HVAC
Air handlers, rooftop units.
Why Choose the W2E200-HK38-01A?
✅ Energy Efficient: Optimized motor design minimizes power consumption (80W).
✅ Low Maintenance: Sealed ball bearings prevent lubricant leakage.
✅ Global Certifications: Complies with UL, CE, CSA for international deployment.
Conclusion
The W2E200-HK38-01A blends high performance with industrial-grade durability, making it ideal for thermal management in harsh settings. Compare other W2E200 models for tailored airflow solutions.
Need help selecting a fan? Contact our technical team for personalized recommendations.
