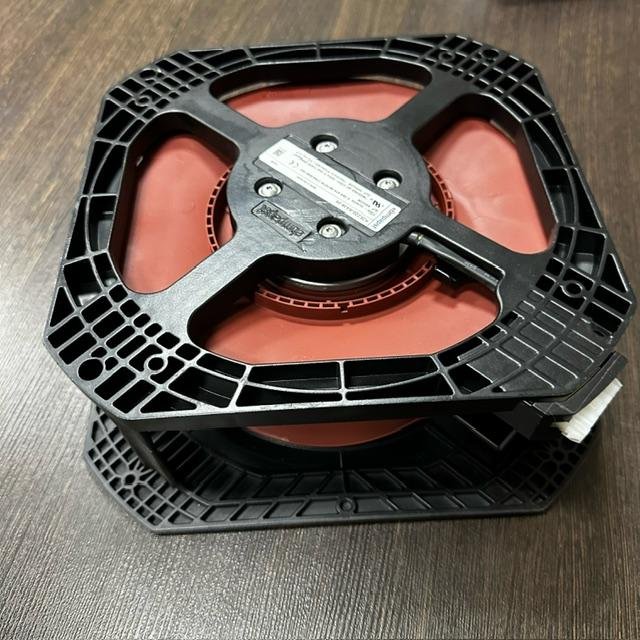

K2E200-AD20-01 ebm-papst K2E200-AD20-01 Diagonal AC Fan | 230V 544 CFM Industrial Cooling Fan with Ball Bearings & IP44
The ebm-papst K2E200-AD20-01 is a high-performance 230V AC diagonal fan delivering 544 CFM airflow with ball bearings, PP frame, and IP44 protection. Designed for demanding HVAC and industrial applications.
Key Features
🌀 High Airflow Performance: 544 CFM (15.23 m³/min) at 3150 RPM for efficient cooling.
🔄 Long-Lasting Durability: Ball bearings ensure a 50,000+ hour lifespan.
🛡 Robust Construction: Polypropylene housing with IP44 protection against dust and moisture.
In Stock
Request a Quoteebm-papst K2E200-AD20-01 Diagonal AC Fan – High-Capacity Industrial Ventilation
The K2E200-AD20-01 is part of ebm-papst’s K2E200-AD series, designed for high-performance air movement in HVAC, industrial cooling, and exhaust systems. With polyamide (PA) blades, a polypropylene (PP) frame, and thermal overload protection, it provides reliable, maintenance-free operation in harsh environments.
Technical Specifications
| Attribute | Specification |
|---|---|
| Air Flow | 544 CFM (15.23 m³/min) |
| Approval Agencies | UL-Listed |
| Bearing Type | Ball Bearing (50,000+ Hours Lifespan) |
| Blade Material | Polyamide (PA), Nylon |
| Brand | ebm-papst |
| Current Rating | 0.380A (380mA) |
| Depth | 90mm |
| Direction of Rotation | Clockwise (Viewed Toward Rotor) |
| Fan Frame Size | 245.5mm (Square) |
| Fan Type | Diagonal (Tubeaxial) |
| Height | 245.5mm |
| Housing Material | Polypropylene (PP) |
| IP Rating | IP44 (Dust & Splash-Resistant) |
| Maximum Temperature | +65°C |
| Minimum Temperature | -25°C |
| Mounting Position | Shaft horizontal or rotor on top |
| Noise Level | – (Standard Industrial Noise) |
| Power Rating | 85W |
| Rated Speed | 3150 RPM |
| Series | K2E200-AD (Industrial Diagonal AC Fans) |
| Static Pressure | 0.844 in H2O (210.2 Pa) |
| Termination Style | Quick Connect Terminal |
| Type | Diagonal Fan |
| Voltage Rating | 230V AC (±10%) |
| Weight | 5.73 lb (2.6 kg) |
| Width | 245.5mm |
K2E200-AD Series – High-Pressure Industrial Diagonal Fans
Series Highlights
✔ Optimized for Static Pressure: 0.844 in H2O (210.2 Pa) for overcoming resistance in ducts.
✔ Thermal Protection: Built-in overload protector (TOP) prevents motor burnout.
✔ Versatile Mounting: Can be installed horizontally or vertically (rotor up/down).
Alternative Models in K2E200-AD Series
| Model | Voltage | Airflow | Power | Best For |
|---|---|---|---|---|
| K2E200-AD08-02 | 115V AC | 479 CFM | 75W | Lower-voltage applications |
| K2E200-AD20-01 | 230V AC | 544 CFM | 85W | High-flow industrial cooling |
Applications for K2E200-AD20-01
1️⃣ HVAC Systems
Air handling units, ducted exhausts, rooftop ventilation.
2️⃣ Industrial Machinery Cooling
Laser cutters, welding equipment, compressors.
3️⃣ Commercial Ventilation
Parking garages, kitchen hoods, agricultural drying systems.
Why Choose the K2E200-AD20-01?
✅ Proven Reliability: UL-certified with ebm-papst’s industry-leading quality.
✅ Energy-Efficient: Optimized blade design minimizes power consumption.
✅ Low Maintenance: Sealed ball bearings reduce servicing needs.
Conclusion
The K2E200-AD20-01 delivers high static pressure and airflow (544 CFM) for demanding industrial applications. Compare it to the 115V K2E200-AD08-02 for lower-voltage needs.
