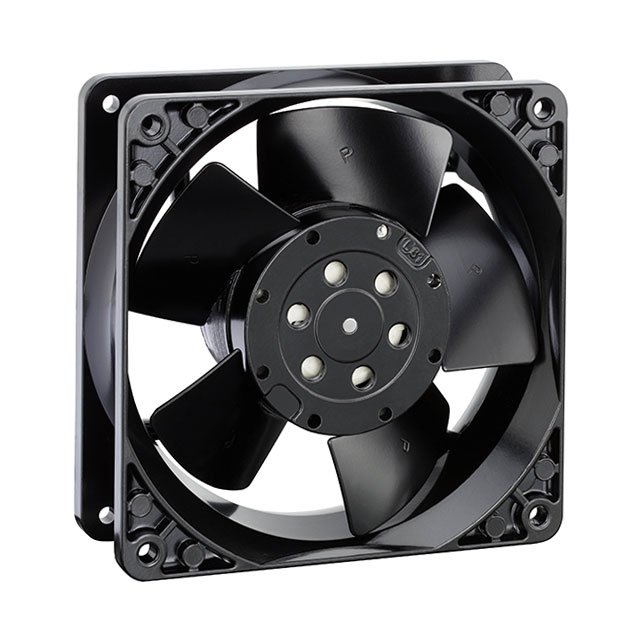

4580Z ebm-papst 4580Z AC Fan | 119x119x38mm | 67.6 CFM | 230VAC | IP20 | Sintec Bearing
The ebm-papst 4580Z is a high-quality 119mm AC axial fan delivering 67.6 CFM airflow at 1900 RPM. Features metal construction, 13W power consumption, and CE/UL certifications.
- 67.6 CFM (1.89m³/min) Airflow for effective cooling
- Durable metal housing and blades for long service life
- Low noise operation at just 30dB(A)
- Energy efficient 13W motor
In Stock
Request a Quoteebm-papst 4580Z Compact AC Axial Fan
The ebm-papst 4580Z is a compact yet powerful AC axial fan from the renowned 4000Z series. With dimensions of 119×119×38mm, this square-shaped fan delivers 67.6 CFM (1.89m³/min) airflow while consuming only 13W power at 230VAC.
Key Specifications:
- Bearing: Reliable Sintec sleeve bearing
- Housing: All-metal construction (aluminum frame and blades)
- Speed: 1900 RPM with clockwise rotation
- Noise Level: 30dB(A) for quiet operation
- Termination: 2-terminal quick connect
- Certifications: CE, CSA, UL, VDE approved
Ideal Applications
- Industrial equipment cooling
- Control cabinet ventilation
- Electronic enclosure cooling
- Medical device cooling
- Telecom infrastructure
- Power supply cooling
Key Features & Benefits
Efficient Cooling Performance
- 67.6 CFM airflow provides effective cooling in tight spaces
- Optimized aerodynamics for maximum air movement
- 1900 RPM balances performance and noise level
Durable Industrial Construction
- All-metal housing and impeller for durability
- Sintec sleeve bearing offers maintenance-free operation
- Wide temperature range (-10°C to +65°C)
- 50,000 hour lifespan at 40°C (MTBF)
Easy Installation
- Compact 119×119×38mm size fits most standard applications
- 2-terminal quick connect for simple wiring
- M4 mounting screws included (TORX head)
- Standard square form factor for versatile mounting
Technical Specifications
| Attribute | Specification |
|---|---|
| Air Flow | 67.6 CFM (1.89m³/min) |
| Bearing Type | Sintec |
| Brand | ebm-papst |
| Configuration | Square |
| Current Type | AC |
| Depth | 38 mm |
| Fan Type | Tubeaxial |
| Frequency | 50 Hz |
| Height | 119 mm |
| Housing Material | Metal |
| IP Rating | IP20 |
| Manufacturer Part Number | 4580Z |
| Material | Metal |
| Maximum Operating Temperature | 65 °C |
| Noise Level | 30 dB(A) |
| Nominal Voltage | 230V AC |
| Power Rating | 13 W |
| Product Category | AC Fans |
| Product Type | AC Fans |
| Rotation | Clockwise (CW) |
| Series | 4000 Z Series |
| Size | 119×119×38mm |
| Speed | 1900 RPM |
| Temperature Range | -10 to 65 °C |
| Termination | 2 Terminals |
| Type | Axial |
| Voltage Rating | 230 V |
| Weight | 540 g |
ebm-papst 4000Z Series Overview
The 4000Z Series represents ebm-papst’s line of premium compact axial fans designed for industrial and commercial applications. The series offers various airflow capacities from 58.8 CFM to 106 CFM in a standardized 119mm frame size.
Series-Wide Features:
- Multiple voltage options (115VAC/230VAC/24VAC)
- Sintec sleeve or ball bearing configurations
- All-metal construction for durability
- Terminal block or wire lead termination options
- Standardized 119×119mm footprint with 38mm depth
4000Z Series Product Comparison
| Model | Voltage | Airflow | Power | Speed | Noise | Key Feature |
|---|---|---|---|---|---|---|
| 4580Z | 230VAC | 67.6 CFM | 13W | 1900 RPM | 30dB(A) | Featured model – best balance |
| 4850Z | 230VAC | 58.8 CFM | 13W | 1700 RPM | 26dB(A) | Quietest option |
| 4650Z | 230VAC | 94.1 CFM | 19W | 2650 RPM | 40dB(A) | High airflow option |
| 4600Z | 115VAC | 106.0 CFM | 18W | 3100 RPM | 45dB(A) | Maximum performance |
| 4800Z | 115VAC | 61.7 CFM | 12W | 1800 RPM | 28dB(A) | Low power option |
Selection Guide:
- For general cooling needs: 4580Z (best balance of airflow & noise)
- For quiet environments: 4850Z (26dB)
- For maximum cooling: 4600Z (106 CFM)
- For low-power applications: 4800Z (12W)
Frequently Asked Questions (FAQ)
Q1: What makes the 4580Z AC fan suitable for industrial applications?
A: The 4580Z features rugged metal construction, a Sintec sleeve bearing rated for 50,000 hours, and operates reliably from -10°C to 65°C – making it ideal for demanding industrial environments.
Q2: Can the 4580Z AC fan be used in outdoor applications?
A: While the IP20 rating provides basic particle protection, this fan is primarily designed for indoor use. For outdoor applications, we recommend models with higher IP ratings from ebm-papst’s product lines.
Q3: How does the 4580Z compare to similar-sized DC fans?
A: While DC fans offer speed control, the 4580Z provides high starting torque and robust performance with simpler wiring requirements (straightforward AC connection). It’s ideal when speed control isn’t necessary.
Q4: Is the 4580Z fan suitable for continuous operation?
A: Yes, the 4580Z is designed for continuous operation with a 50,000 hour lifespan at 40°C ambient temperature. The Sintec bearing requires no lubrication or maintenance.
Q5: What safety certifications does the ebm-papst 4580Z carry?
A: The fan is certified to CE, CSA, UL, and VDE safety standards, ensuring compliance with international electrical and safety requirements.
Q6: Can the rotation direction of the ebm-papst 4580Z be reversed?
A: No, this fan is designed for clockwise (CW) rotation only as per its optimized aerodynamic design. Reversing rotation would significantly reduce performance and is not recommended.
Why Choose the 4580Z?
The ebm-papst 4580Z stands out as an exceptional compact cooling solution because:
✅ Proven reliability with 50,000 hour rated lifespan
✅ Excellent airflow per watt (67.6 CFM at just 13W)
✅ Vibration-resistant metal construction
✅ Globally recognized safety certifications
✅ Standardized sizing for easy replacement
Ideal for OEM applications requiring:
✔ Consistent cooling in tight spaces
✔ Minimal maintenance requirements
✔ Reliable operation in industrial temperatures
✔ Safety-compliant components
For applications needing even higher performance, consider:
➔ 4650Z (230VAC/94.1 CFM) for greater airflow
➔ 4850Z (230VAC/58.8 CFM) for ultra-quiet operation
