Showing all 6 results
- Positive Locking Mechanism: 26.67mm lever requires deliberate force to prevent inadvertent switching
- Extended Temperature Range: Operates flawlessly from Arctic -65°C to desert-hot +71°C
- Military-Grade Construction: Tested to withstand vibration, shock, and environmental extremes
The C&K TDD01H0SB1R is a surface-mount SPDT (Single-Pole, Double-Throw) slide switch designed for space-constrained handheld, portable, and industrial electronics. It features a low-profile design (0.091?? / 2.30mm height), RoHS3 compliance, and a robust construction using high-performance materials, making it ideal for applications requiring durability, miniaturization, and washable processing compatibility.

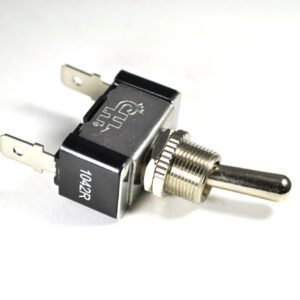

- Proven heavy-duty construction — plastic housing with plated steel cap, nickel-plated brass toggle, and silver contacts for durability and low contact resistance.
- Drop-in panel fit — mounts through a 0.46875 in (11.9 mm) hole; supports up to ¼ in (6.35 mm) panels.
- Workhorse ratings — 10 A @ 36 V DC, ideal for common auxiliary loads in 12–36 V fleets.
- True heavy-duty build – silver contacts, plated-steel cap, and metal actuator for long service life in harsh cabins.
- Operator-safe control – momentary action in both directions springs back to center to help prevent unintended run-on.
- Fleet-friendly service – 3 screw terminals and a standard 15/32 in panel hole speed installation and replacement.
-
IP67-sealed construction with actuator O-ring and epoxy-sealed lead interface for harsh, wash-down environments.
-
High DC switching capability: 25 A @ 12 VDC or 15 A @ 24 VDC for direct control of many loads.
-
Drop-in panel fit: 15/32-in mounting, nickel-plated face nut, standard 11/16-in toggle, and 14 AWG leads for easy harnessing.
- Momentary in both directions: Up and Down return-to-center action for safe, operator-attended controls.
- Heavy-duty ratings: 25 A @ 12 V DC, 15 A @ 24 V DC, 10 A @ 36 V DC across the Standard Heavy Duty Toggle Switch series.
- Corrosion-resistant contacts: Silver contacts enhance life and reliability in harsh environments.
